Behind Instrument Panel Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

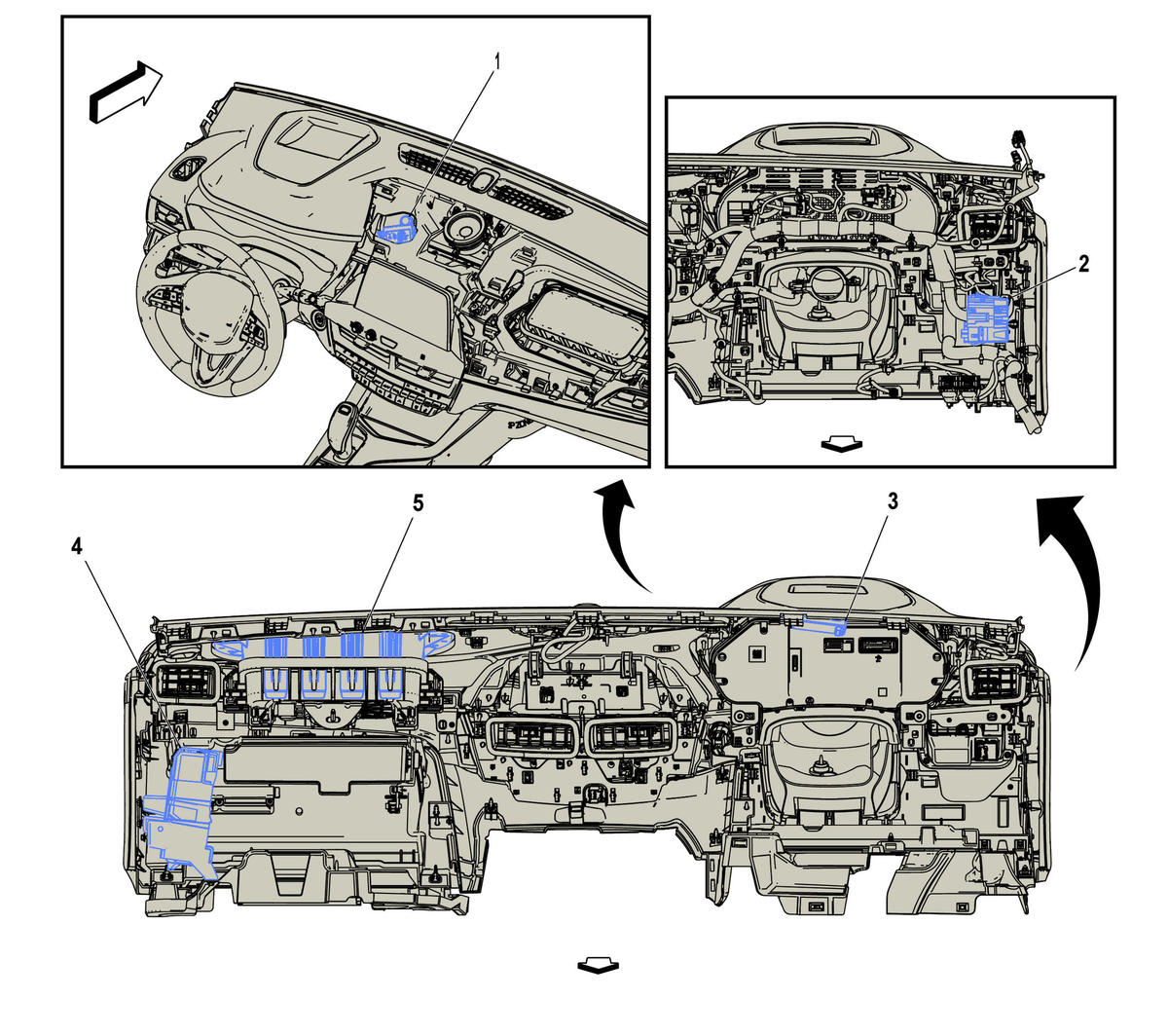

Behind Instrument Panel Components
| Component Name | Callout |
|---|---|
| V1 Passenger Compartment Air Filter Module (KEM) V1 Passenger Compartment Air Filter Module | 1 |
| X51A Instrument Panel Wiring Harness Junction Block X51A Instrument Panel Wiring Harness Junction Block | 2 |
| P43 Forward Collision Alert Display P43 Forward Collision Alert Display | 3 |
| A11 Radio A11 Radio X1A11 Radio X10A11 Radio X2A11 Radio X3A11 Radio X4A11 Radio X5 (-UVB)A11 Radio X5 (UVB)A11 Radio X6A11 Radio X7A11 Radio X8 (-U2Q)A11 Radio X8 (U2Q)A11 Radio X9 (-U2Q)A11 Radio X9 (U2Q) | 4 |
| F101 Instrument Panel Airbag F101 Instrument Panel Airbag X1F101 Instrument Panel Airbag X2 | 5 |
