Behind Instrument Panel - Right

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

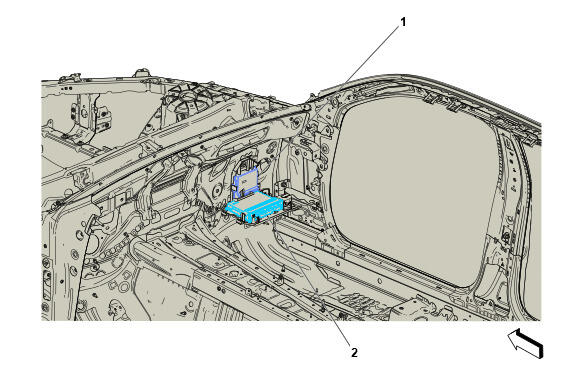

Harness Name	Callout
K219 Lighting Control Module K219 Lighting Control Module X1 K219 Lighting Control Module X2 K219 Lighting Control Module X3 K219 Lighting Control Module X4 K219 Lighting Control Module X5	1
K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7 K9 Body Control Module X8	2
