Behind Instrument Panel - Left

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

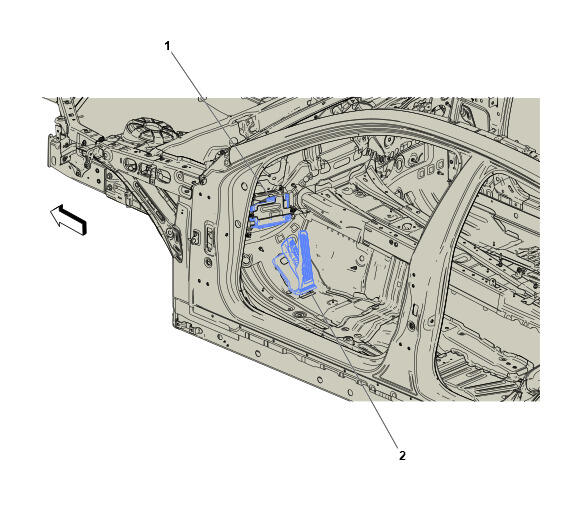

GM5393477Courtesy of GENERAL MOTORS COMPANY
Behind Instrument Panel - Left

Harness Name Callout
K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1K56 Serial Data Gateway Module X2K56 Serial Data Gateway Module X3 1
B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor 2
