Ground Views: G400

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

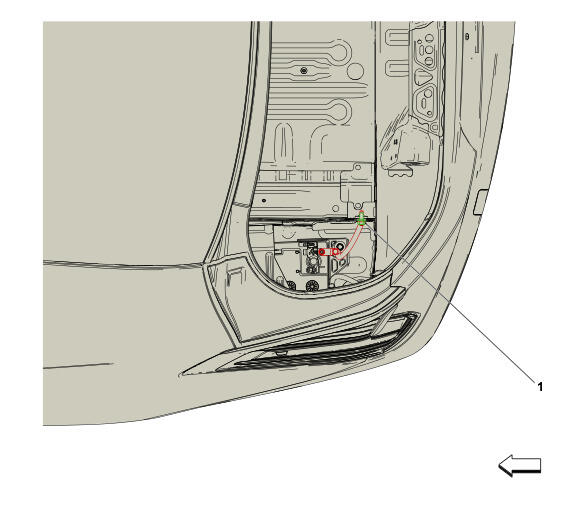

GM5397276Courtesy of GENERAL MOTORS COMPANY
G400

Harness Name Callout
G400 Battery Negative Cable 1
