G305 and G306

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

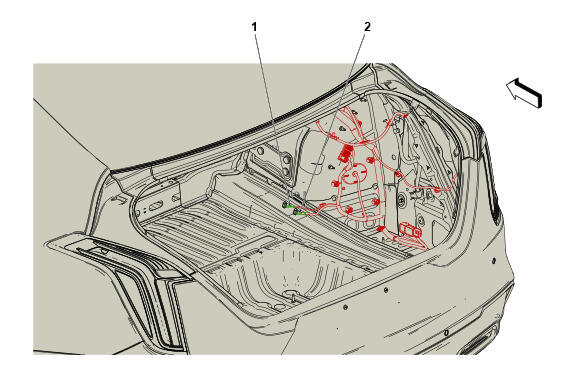

GM5844016Courtesy of GENERAL MOTORS COMPANY
G305 and G306

Harness Name Callout
G306 Body Wiring Harness 1
G305 Instrument Panel Wiring Harness 2
