Ground Views: G302

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

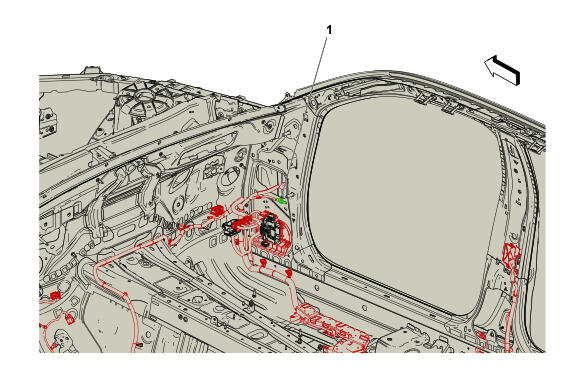

GM5844015Courtesy of GENERAL MOTORS COMPANY
G302

Harness Name Callout
G302 Instrument Panel Wiring Harness 1
