Ground Views: G301

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

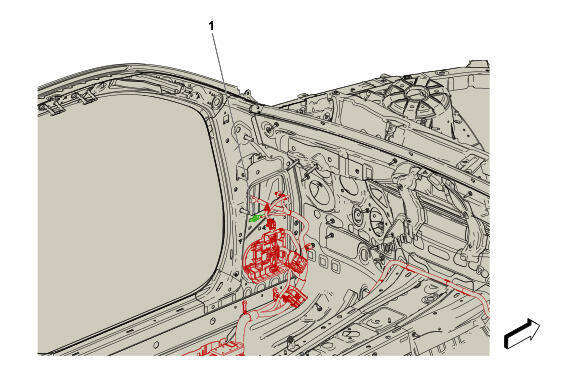

GM5844014Courtesy of GENERAL MOTORS COMPANY
G301

Harness Name Callout
G301 Instrument Panel Wiring Harness 1
