G205 and G207

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

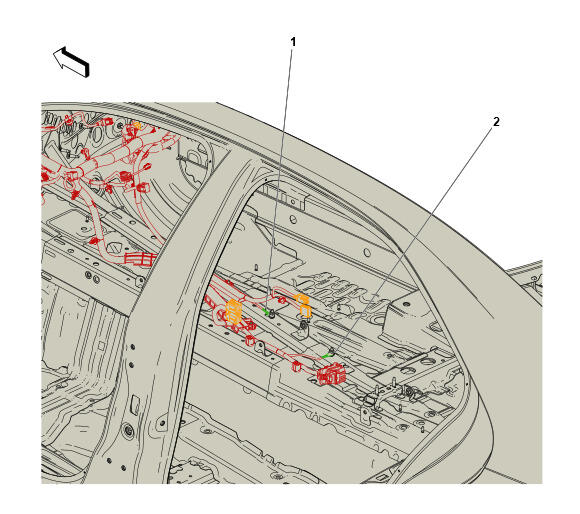

GM5844013Courtesy of GENERAL MOTORS COMPANY
G205 and G207

Harness Name Callout
G207 Instrument Panel Wiring Harness 1
G205 Instrument Panel Wiring Harness 2
