Ground Views: G201

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

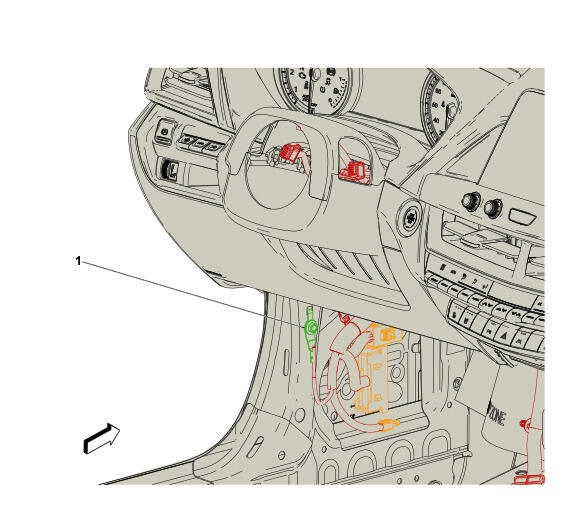

GM5395077Courtesy of GENERAL MOTORS COMPANY
G201

Harness Name Callout
G201 Instrument Panel Wiring Harness 1
