Ground Views: G110

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

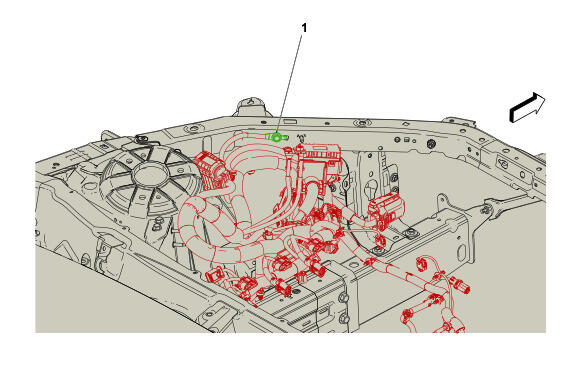

GM5844012Courtesy of GENERAL MOTORS COMPANY
G110

Harness Name Callout
G110 Engine Wiring Harness 1
