G104B, G104C and G110 (LF4)
G104B, G104C and G110 (LF4)
WARNING:
This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

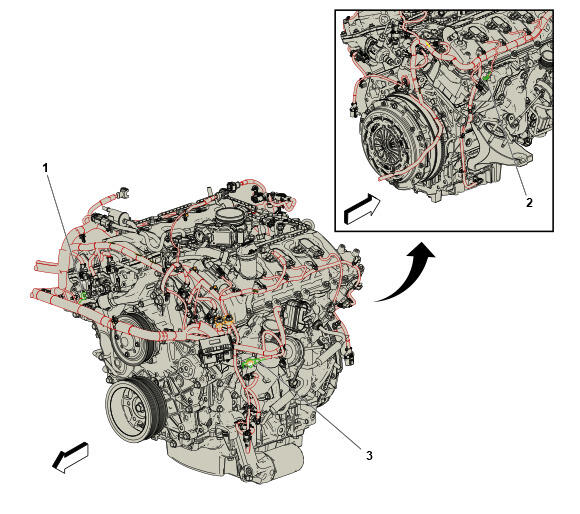

G104B, G104C and G110 (LF4)
Harness Name
Callout
G104B Engine Wiring Harness
1
G104C Engine Wiring Harness
2
G110 Engine Wiring Harness
3
