G102 and G106

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

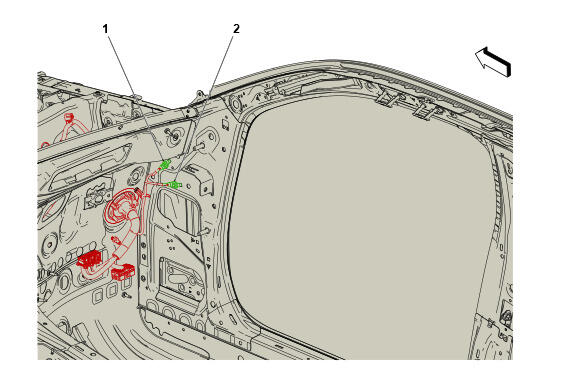

GM5844004Courtesy of GENERAL MOTORS COMPANY
G102 and G106

Harness Name Callout
G106 Forward Lamp Wiring Harness 1
G102 Forward Lamp Wiring Harness 2
