G101 and G105

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

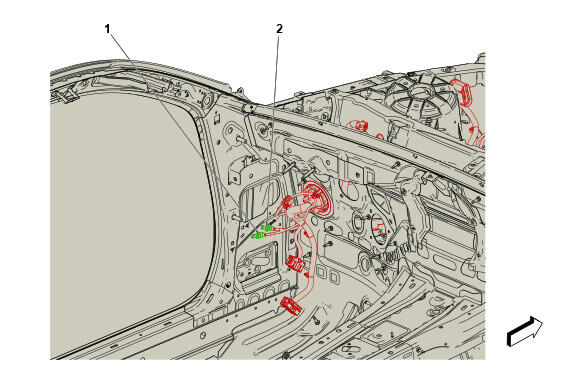

GM5844002Courtesy of GENERAL MOTORS COMPANY
G101 and G105

Harness Name Callout
G101 Forward Lamp Wiring Harness 1
G105 Engine Wiring Harness 2
