Section 469 (Electrical Component Locator And Harness Routing Views)
>>
Component Locator
>>
Ground Views
>>
G100 (L3B)
G100 (L3B)
WARNING:
This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

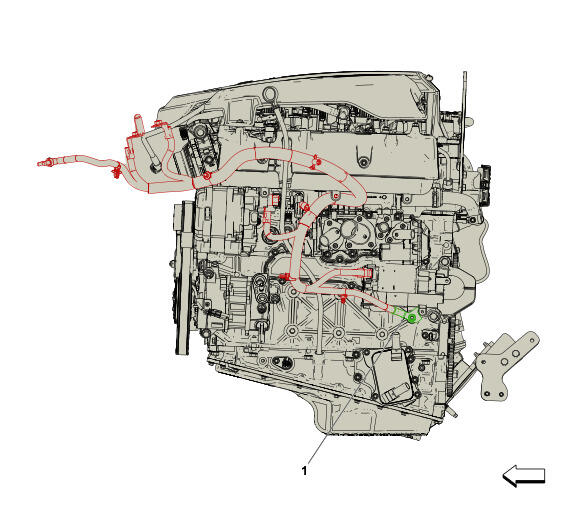

G100 (L3B)
Harness Name
Callout
G100 Starter Generator Ground Harness
1
