Radiator Assembly Components

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

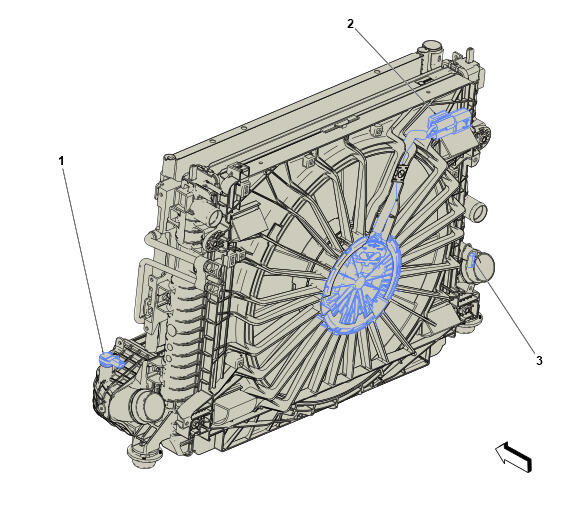

GM5843544Courtesy of GENERAL MOTORS COMPANY
Radiator Assembly Components

Component Name Callout
B111 Turbocharger/Supercharger Boost Pressure Sensor B111 Turbocharger/Supercharger Boost Pressure Sensor 1
G10 Cooling Fan Motor G10 Cooling Fan Motor 2
B203 Radiator Coolant Temperature Sensor B203 Radiator Coolant Temperature Sensor 3
