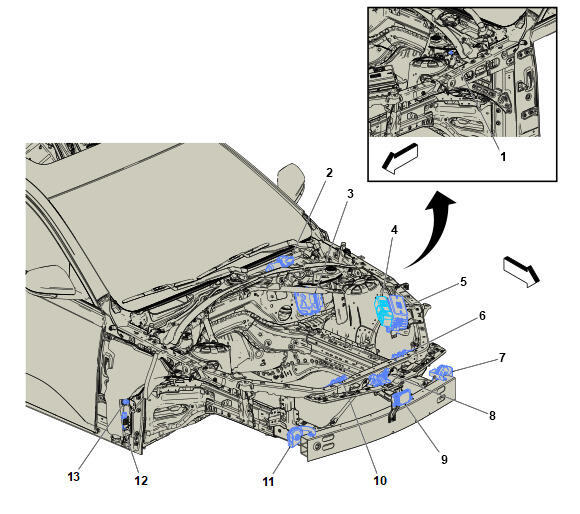

Front of Engine Compartment Components (1 of 2)

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Component Name	Callout
B20 Brake Fluid Level Sensor B20 Brake Fluid Level Sensor	1
M75 Windshield Wiper Motor M75 Windshield Wiper Motor	2
K160 Brake System Control Module K160 Brake System Control Module ((LSY/L3B)+UKL)K160 Brake System Control Module ((LSY/L3B)-UKL)K160 Brake System Control Module (LF4)	3
X50B Battery Distribution Engine Compartment Fuse Block X50B Battery Distribution Engine Compartment Fuse Block X2 X50B Battery Distribution Engine Compartment Fuse Block X3 (L3B/LSY)X50B Battery Distribution Engine Compartment Fuse Block X3 (LF4)X50B Battery Distribution Engine Compartment Fuse Block X4 X50B Battery Distribution Engine Compartment Fuse Block X5 X50B Battery Distribution Engine Compartment Fuse Block X6 X50B Battery Distribution Engine Compartment Fuse Block X7	4
X50A Engine Wiring Harness Junction Block X50A Engine Wiring Harness Junction Block X1 X50A Engine Wiring Harness Junction Block X2 X50A Engine Wiring Harness Junction Block X4 (Battery Cable - Positive)X50A Engine Wiring Harness Junction Block X4 (Starter - Generator)	5
B58L Airbag Front End Discriminating Sensor - Left B58L Airbag Front End Discriminating Sensor - Left	6
P12A Horn - High Note P12A Horn - High Note	7
B55 Engine Compartment Cover Switch B55 Engine Compartment Cover Switch	8
B233B Forward Range Radar Sensor - Long Range (UGN) B233B Forward Range Radar Sensor - Long Range	9
B58R Airbag Front End Discriminating Sensor - Right B58R Airbag Front End Discriminating Sensor - Right	10
P12B Horn - Low Note P12B Horn - Low Note	11
G24 Windshield Washer Pump G24 Windshield Washer Pump	12
B118 Windshield Washer Solvent Container Level Sensor B118 Windshield Washer Solvent Container Level Sensor	13
