Driver Door Trim Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

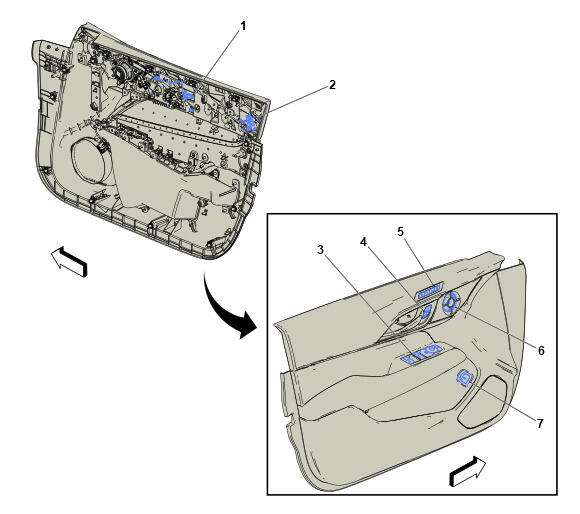

Driver Door Trim Components
| Component Name | Callout |
|---|---|
| E63D Front Side Door Inside Handle Illumination Lamp - Left E63D Front Side Door Inside Handle Illumination Lamp - Left | 1 |
| E1D Front Side Door Light Conductor Lamp - Driver Trim Panel (TSQ) E1D Front Side Door Light Conductor Lamp - Driver Trim Panel | 2 |
| S79D Front Side Door Window Control Switch - Driver S79D Front Side Door Window Control Switch - Driver X1S79D Front Side Door Window Control Switch - Driver X2 | 3 |
| S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver | 4 |
| S47D Front Seat Adjuster Memory Switch - Driver S47D Front Seat Adjuster Memory Switch - Driver | 5 |
| P19AGU Radio Front Side Door Upper Speaker - Left (UQS) P19AGU Radio Front Side Door Upper Speaker - Left (UQS+1SP)P19AGU Radio Front Side Door Upper Speaker - Left (UQS-1SP) | 6 |
| S58B Rear Compartment Lid Release Switch - Interior S58B Rear Compartment Lid Release Switch - Interior | 7 |
