Driver Door Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

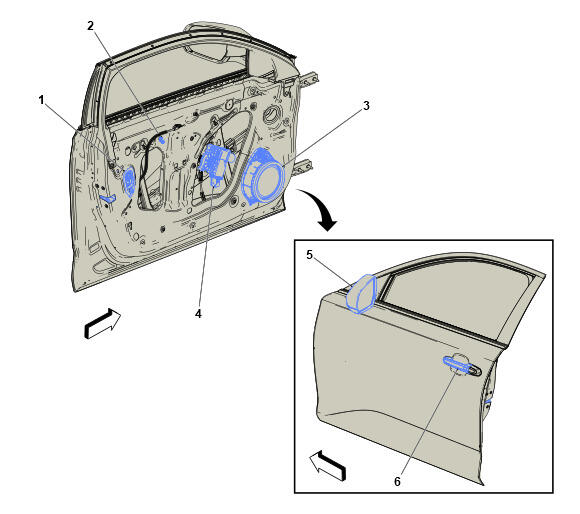

Driver Door Components
| Component Name | Callout |
|---|---|
| A23D Front Side Door Latch - Driver A23D Front Side Door Latch - Driver | 1 |
| B63LF Airbag Side Impact Sensor - Left Front Door B63LF Airbag Side Impact Sensor - Left Front Door | 2 |
| P19AG Radio Front Side Door Speaker - Left P19AG Radio Front Side Door Speaker - Left (UQG)P19AG Radio Front Side Door Speaker - Left (UQS) | 3 |
| M74D Front Side Door Window Regulator Motor - Driver M74D Front Side Door Window Regulator Motor - Driver | 4 |
| A9A Outside Rearview Mirror - Driver | 5 |
| A24D Front Side Door Outside Handle - Left A24D Front Side Door Outside Handle - Left | 6 |
