X193 Forward Lamp Wiring Harness to Front Object Alarm Sensor Wiring Harness
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

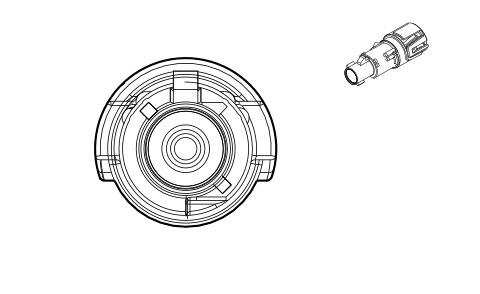

Connector Part Information
- Harness Type: Forward Lamp Wiring Harness COAX
- OEM Connector: 35187049
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way F Coax Type, Sealed (BU)
|
Connector Part Information
- Harness Type: Front Object Alarm Sensor Wiring Harness COAX
- OEM Connector: 33355540
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way M Coax Type, Sealed (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
Coax Cable |
- |
I |
- |
Front Vision Camera 1 Coaxial Video Signal |
- |
- |
Coax Cable |
- |
I |
- |
