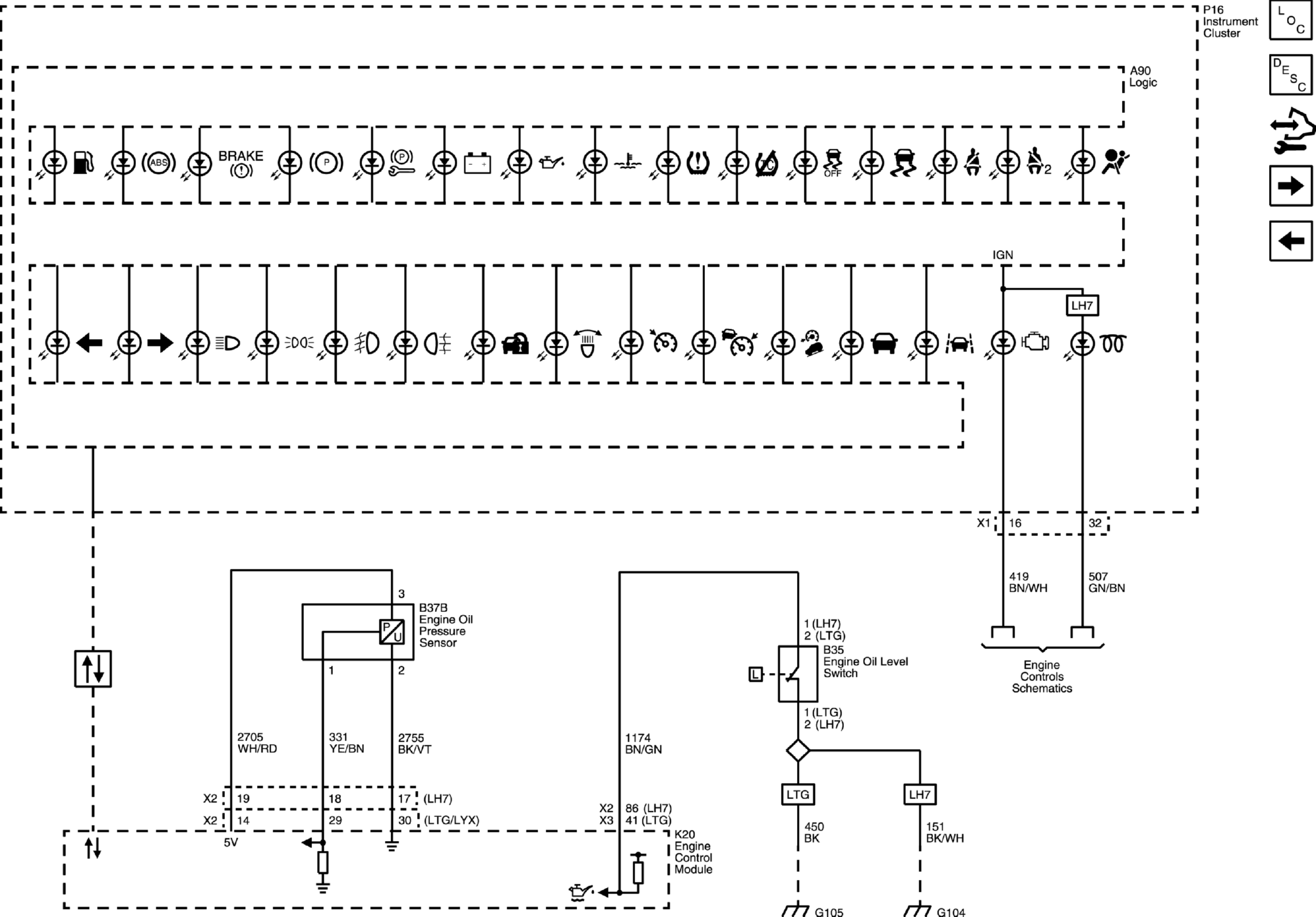

Instrument Cluster System Wiring Schematics: Indicators

GM4874408

Courtesy of GENERAL MOTORS COMPANY
