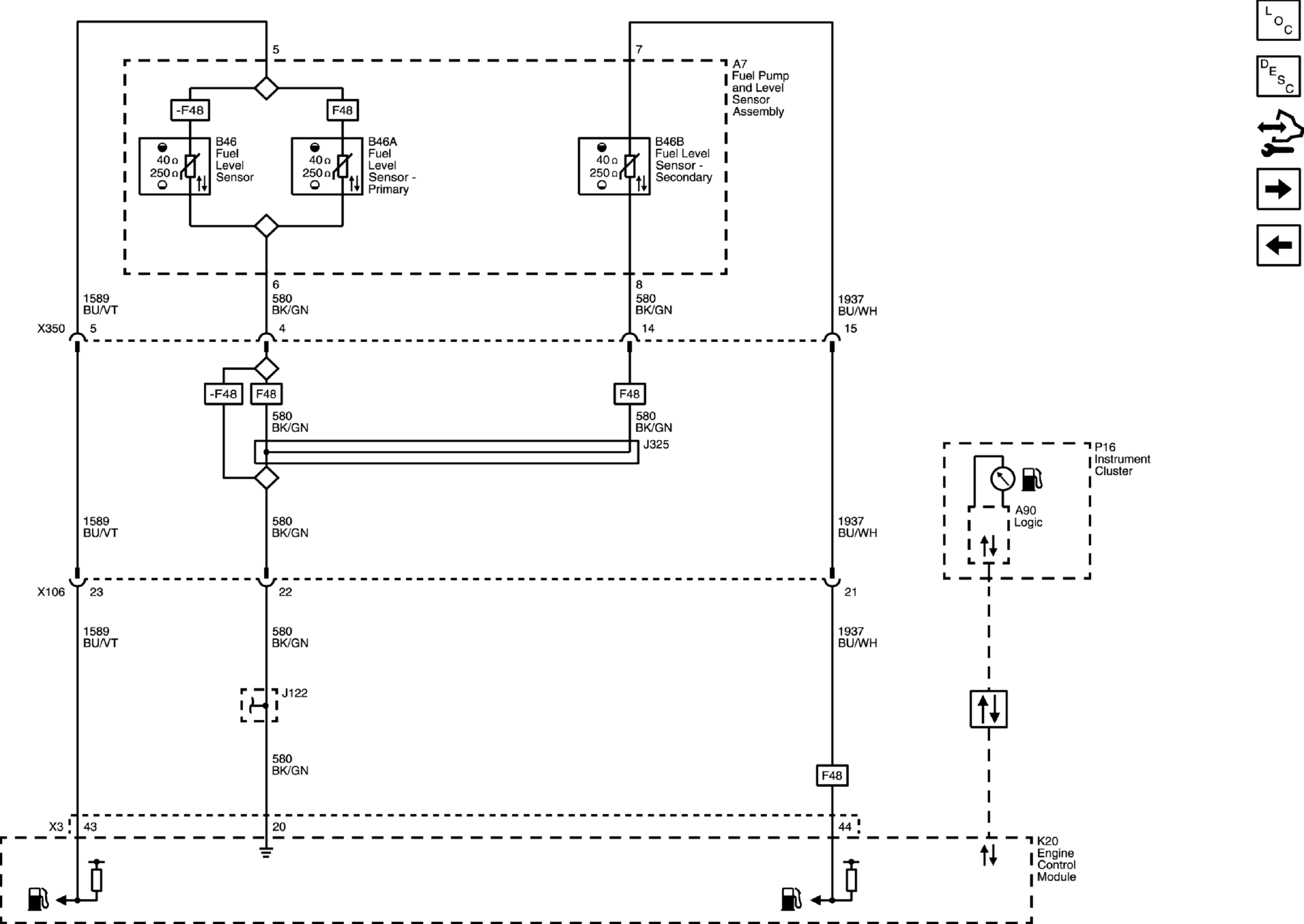

Home >> GMC >> 2019 >> Terrain SL >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster System Wiring Schematics >> Fuel Gauge (LTG or LYX)
