Engine Oil Pressure Sensor and/or Switch Replacement
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Wheelhouse Liner-Left Side - Remove - Front Wheelhouse Liner Replacement (Without ZR2)Front Wheelhouse Liner Replacement (With ZR2)Front Wheelhouse Liner Replacement (Bison) |
|

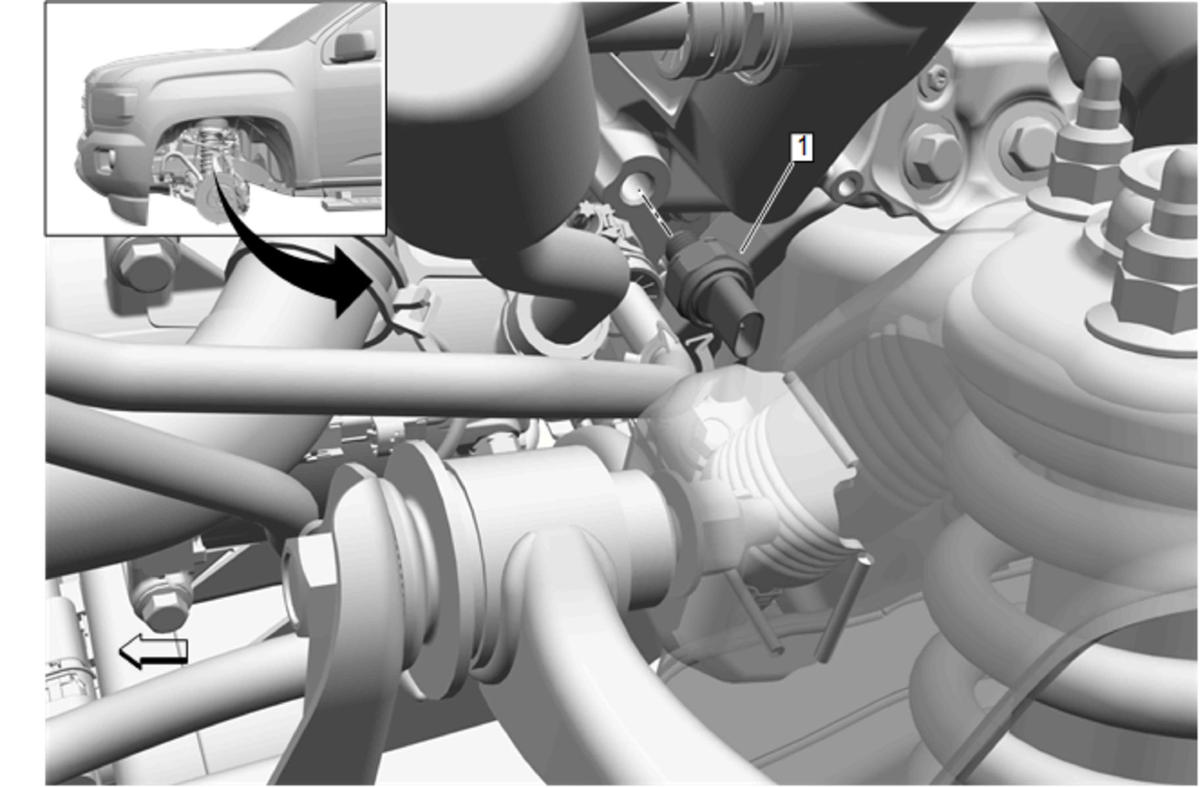

| 1 | Engine Oil Pressure Sensor and/or Switch
CAUTION:
Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector. Tighten 20 N.m (15 lb ft) |
