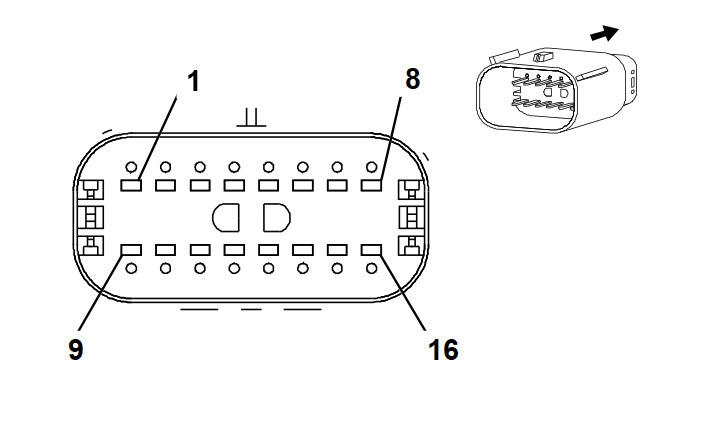

X400 Rear Fascia Harness to Chassis Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Rear Fascia
- OEM Connector: 33472-1607
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way F 150 MX Series, Sealed (L-GY)
|
Connector Part Information
- Harness Type: Chassis
- OEM Connector: 33482-8602
- Service Connector: 84625100
- Description: 16-Way M 150 MX Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
19119395 |
J-35616-3 (GY) |
J-38125-217 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
19119440 |
J-35616-3 (GY) |
J-38125-217 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/WH |
24 |
I |
- |
Backup Lamp Control |
1 |
0.5 |
GN/WH |
24 |
II |
- |
| 2 |
0.5 |
VT/GN |
1739 |
I |
- |
Run/Crank Ignition 1 Voltage 17 |
2 |
0.5 |
VT/GN |
1739 |
II |
- |
| 3 |
0.5 |
BK/WH |
751 |
I |
- |
Ground 7 |
3 |
0.5 |
BK/WH |
751 |
II |
- |
| 4 |
0.5 |
BK |
750 |
I |
- |
Ground 7 |
4 |
0.5 |
BK |
750 |
II |
- |
| 5 |
0.5 |
GN/YE |
6846 |
I |
- |
Rear License Plate Lamp Control |
5 |
0.5 |
GN/YE |
6846 |
II |
- |
| 6 |
- |
- |
- |
- |
- |
Not Occupied |
6 |
- |
- |
- |
- |
- |
| 7 |
0.5 |
BK/GY |
2379 |
I |
- |
Object Sensor Low Reference |
7 |
0.75 |
BK/GY |
2379 |
II |
- |
| 8 |
0.5 |
BN/WH |
2374 |
I |
- |
Object Sensor Supply Voltage |
8 |
0.75 |
BN/WH |
2374 |
II |
- |
| 9 |
0.5 |
GN |
6974 |
I |
- |
Rearview Camera Low Reference |
9 |
0.5 |
GN |
6974 |
II |
- |
| 10 |
0.5 |
WH/BU |
6973 |
I |
- |
Rearview Camera Signal [-] |
10 |
0.5 |
WH/BU |
6973 |
II |
- |
| 11 |
0.5 |
GY/YE |
6972 |
I |
- |
Rearview Camera Signal [+] |
11 |
0.5 |
GY/YE |
6972 |
II |
- |
| 12 |
- |
- |
- |
- |
- |
Not Occupied |
12 |
- |
- |
- |
- |
- |
| 13 |
0.5 |
YE |
2375 |
I |
- |
Left Rear Outer Parking Assist Sensor Signal |
13 |
0.5 |
YE |
2375 |
II |
- |
| 14 |
0.5 |
YE/BU |
2376 |
I |
- |
Left Rear Middle Parking Assist Sensor Signal |
14 |
0.5 |
YE/BU |
2376 |
III |
- |
| 15 |
0.5 |
YE/VT |
2378 |
I |
- |
Right Rear Outer Parking Assist Sensor Signal |
15 |
0.5 |
YE/VT |
2378 |
III |
- |
| 16 |
0.5 |
YE/WH |
2377 |
I |
- |
Right Rear Middle Parking Assist Sensor Signal |
16 |
0.5 |
YE/WH |
2377 |
II |
- |
