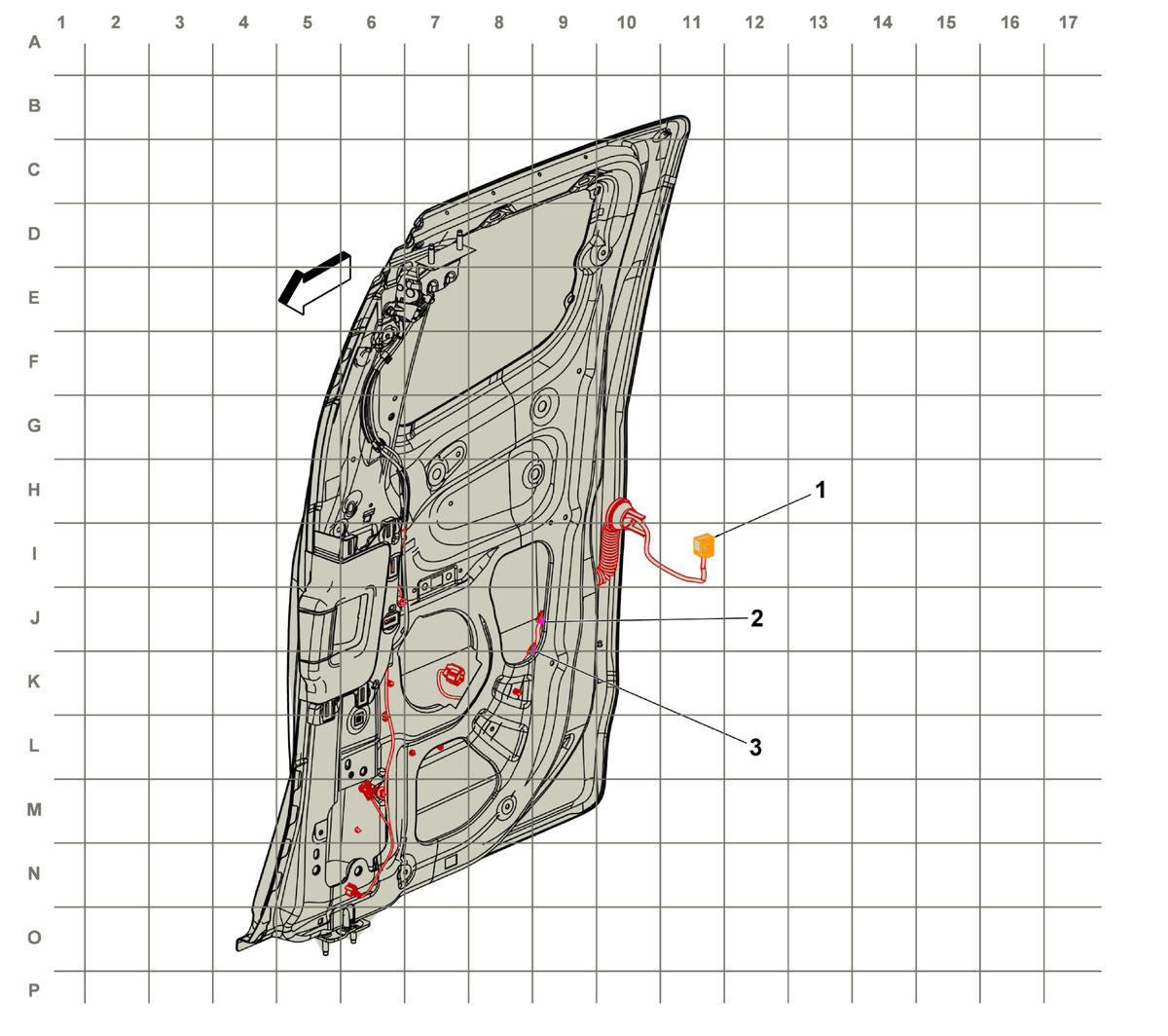

Right Rear Door Harness Routing (Extended Cab)

GM3926807Courtesy of GENERAL MOTORS COMPANY
Items
X800 Right Rear Door Harness to Body Harness (20 cavities) X800 Right Rear Door Harness to Body Harness (Crew Cab)X800 Right Rear Door Harness to Body Harness (Extended Cab)
J800 Right Rear Door Harness (Extended Cab)
J801 Right Rear Door Harness
