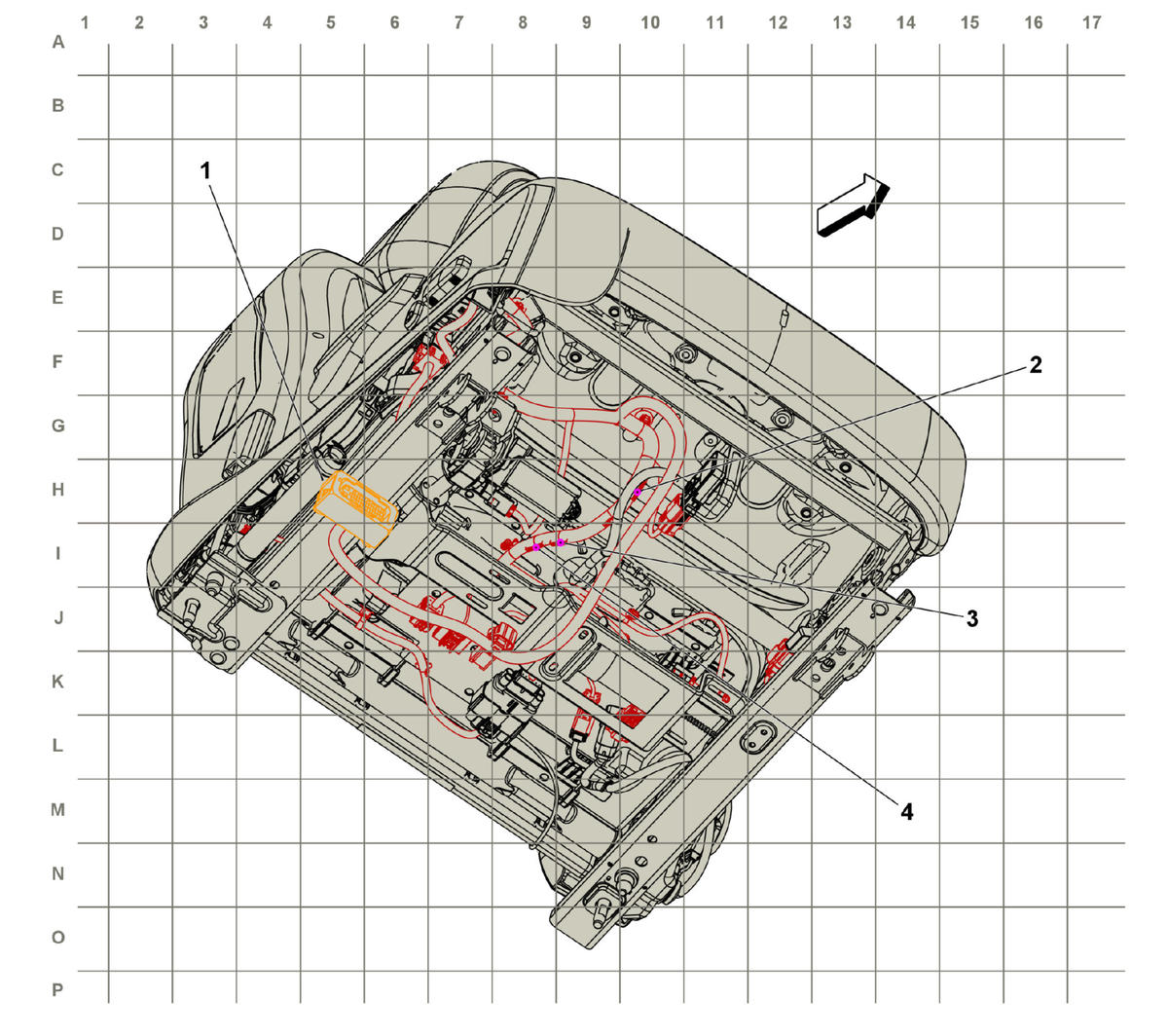

Passenger Seat Harness Routing

GM4282664Courtesy of GENERAL MOTORS COMPANY
Items
X320 Passenger Seat Harness to Body Harness (23 cavities) X320 Passenger Seat Harness to Body Harness
J310 Passenger Seat Cushion Harness (AT9)
J313 Passenger Seat Cushion Harness
J312 Passenger Seat Cushion Harness (AAQ/AT9/KA1)
