Passenger Door Harness Routing

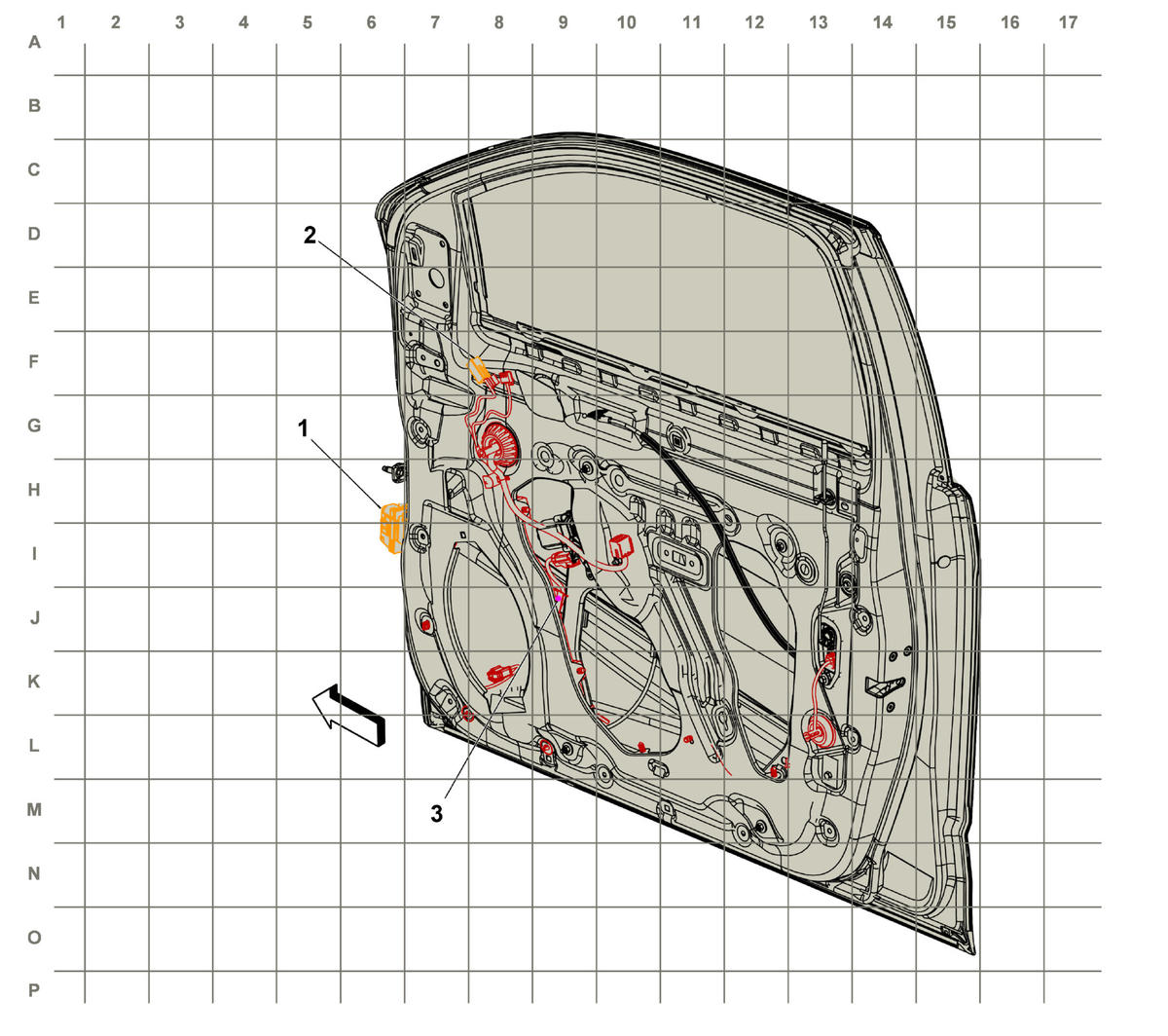

GM3926740Courtesy of GENERAL MOTORS COMPANY
Items
X600 Body Harness to Passenger Door Harness (34 cavities) X600 Body Harness to Passenger Door Harness
X610 Outside Rearview Mirror Harness to Passenger Door Harness (10 cavities) X610 Outside Rearview Mirror Harness to Passenger Door Harness
J600 Passenger Door Harness
