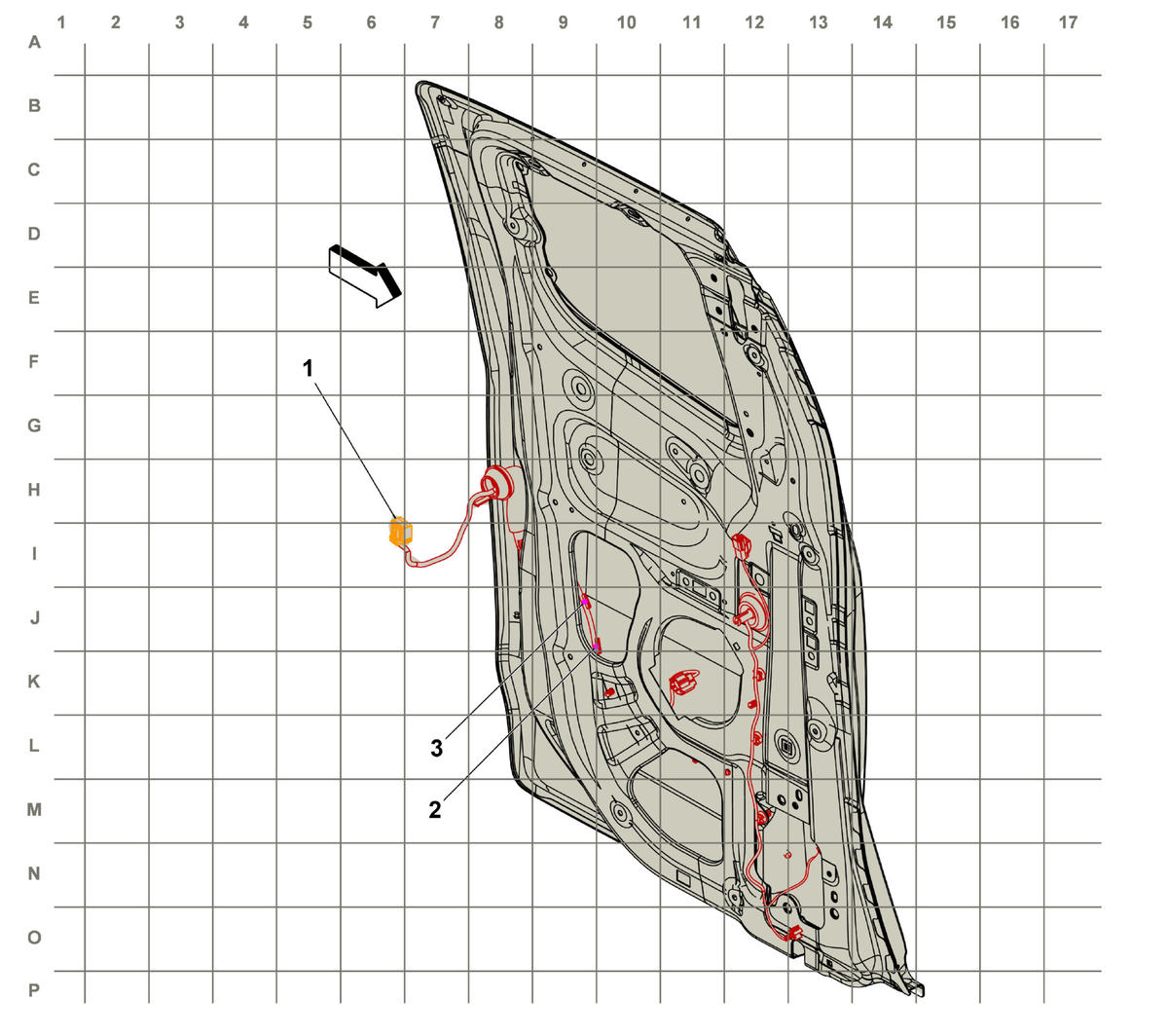

Left Rear Door Harness Routing (Extended Cab)

GM3926802Courtesy of GENERAL MOTORS COMPANY
Items
X700 Left Rear Door Harness to Body Harness (12 cavities) X700 Left Rear Door Harness to Body Harness (Crew Cab)X700 Left Rear Door Harness to Body Harness (Extended Cab)
J701 Left Rear Door Harness
J700 Left Rear Door Harness (Extended Cab)
