Forward Lamp Harness Routing - Right Engine Compartment

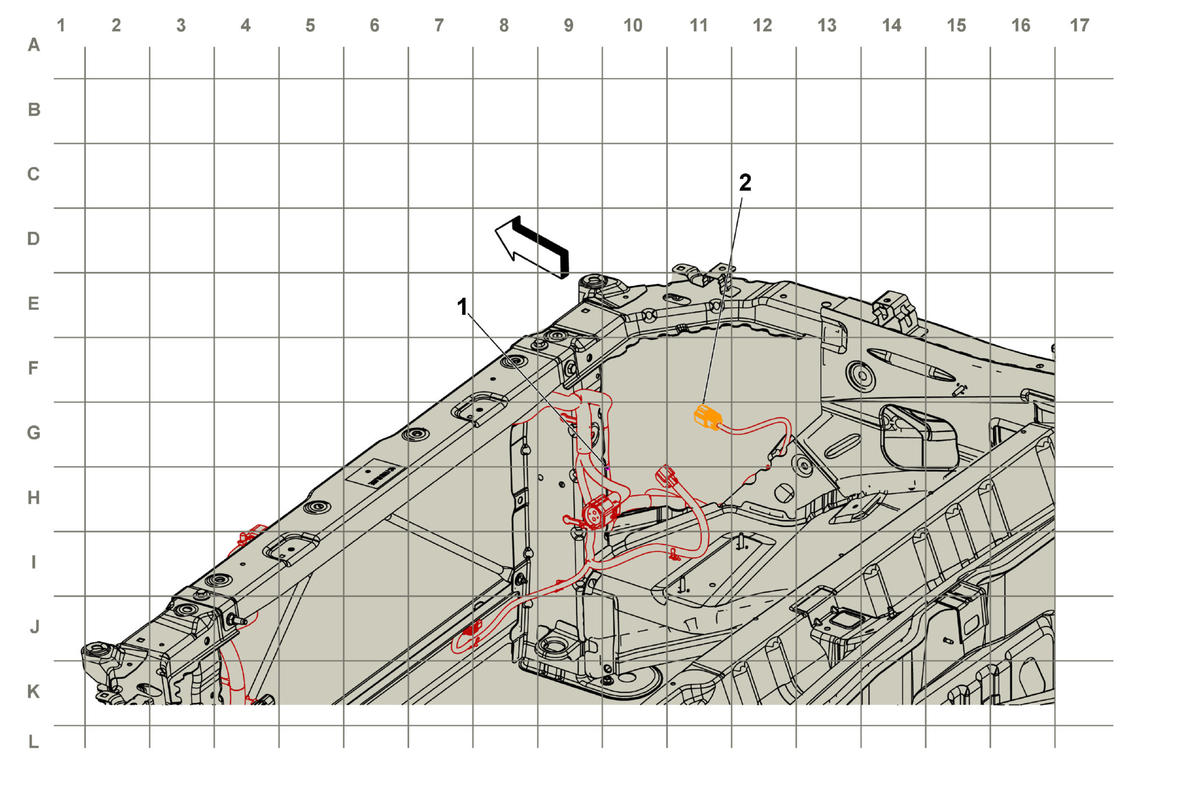

GM3924775Courtesy of GENERAL MOTORS COMPANY
Items
J120 Forward Lamp Harness
X120 Forward Lamp Harness to Right Front Lamp Harness (6 cavities) X120 Forward Lamp Harness to Right Front Lamp Harness
