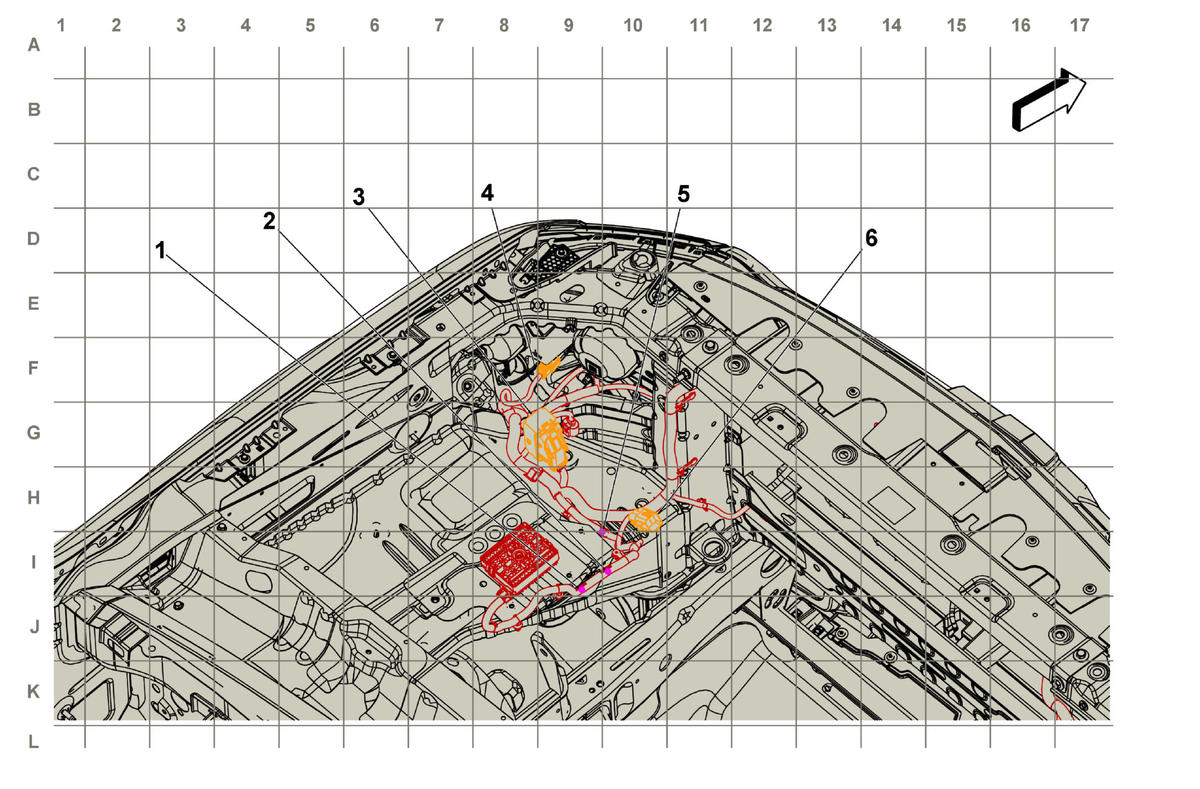

Forward Lamp Harness Routing - Left Engine Compartment (LWN)
| Items |
|---|
| J117 Forward Lamp Harness |
| J118 Forward Lamp Harness |
| X102 Forward Lamp Harness to Body Harness (48 cavities) X102 Forward Lamp Harness to Body Harness |
| X110 Forward Lamp Harness to Left Front Lamp Harness (6 cavities) X110 Forward Lamp Harness to Left Front Lamp Harness |
| J119 Forward Lamp Harness |
| X109 Engine Harness to Forward Lamp Harness (4 cavities) (LWN) X109 Engine Harness to Forward Lamp Harness (LWN) |
