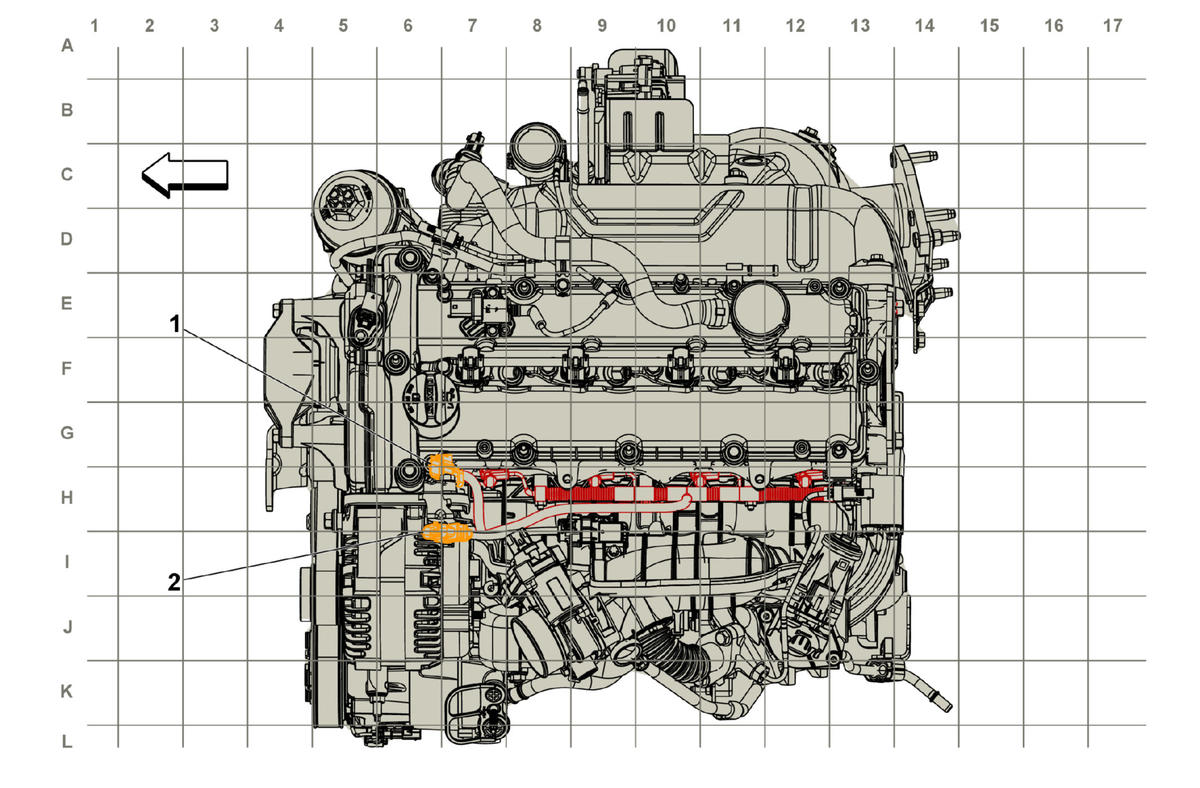

Engine Harness Routing - Top (LWN)

GM4122371Courtesy of GENERAL MOTORS COMPANY
Items
X111 Engine Harness to Glow Plug Harness (4 cavities) (LWN) X111 Engine Harness to Glow Plug Harness (LWN)
X112 Engine Harness to Intake Manifold Pressure Sensor Jumper Harness (LWN) X112 Engine Harness to Engine Harness (LWN)
