Engine Harness Routing - Right Rear (LWN)

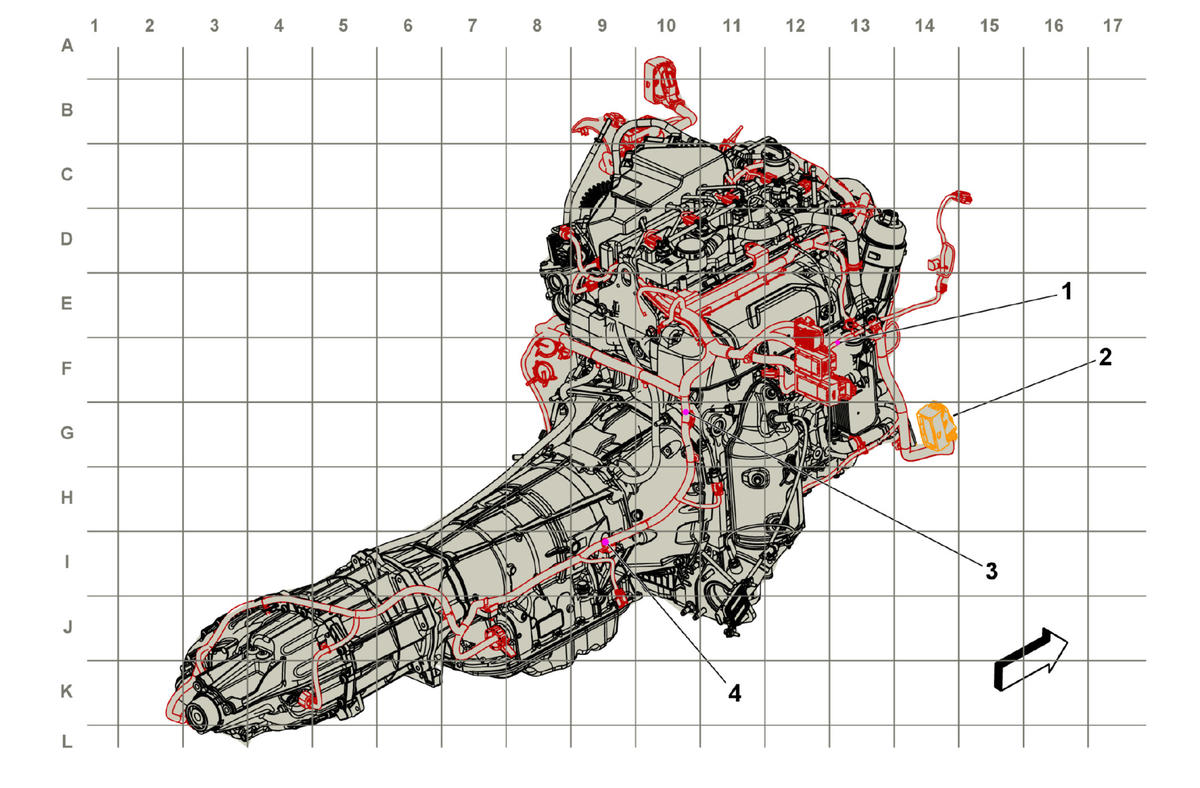

GM4122377Courtesy of GENERAL MOTORS COMPANY
Items
J111 Engine Harness
X107 Engine Harness to Chassis Harness (48 cavities) (LWN) X107 Engine Harness to Chassis Harness (LWN)
J131 Engine Harness (LWN)
J109 Engine Harness
