Engine Harness Routing - Right Front Top (LCV)

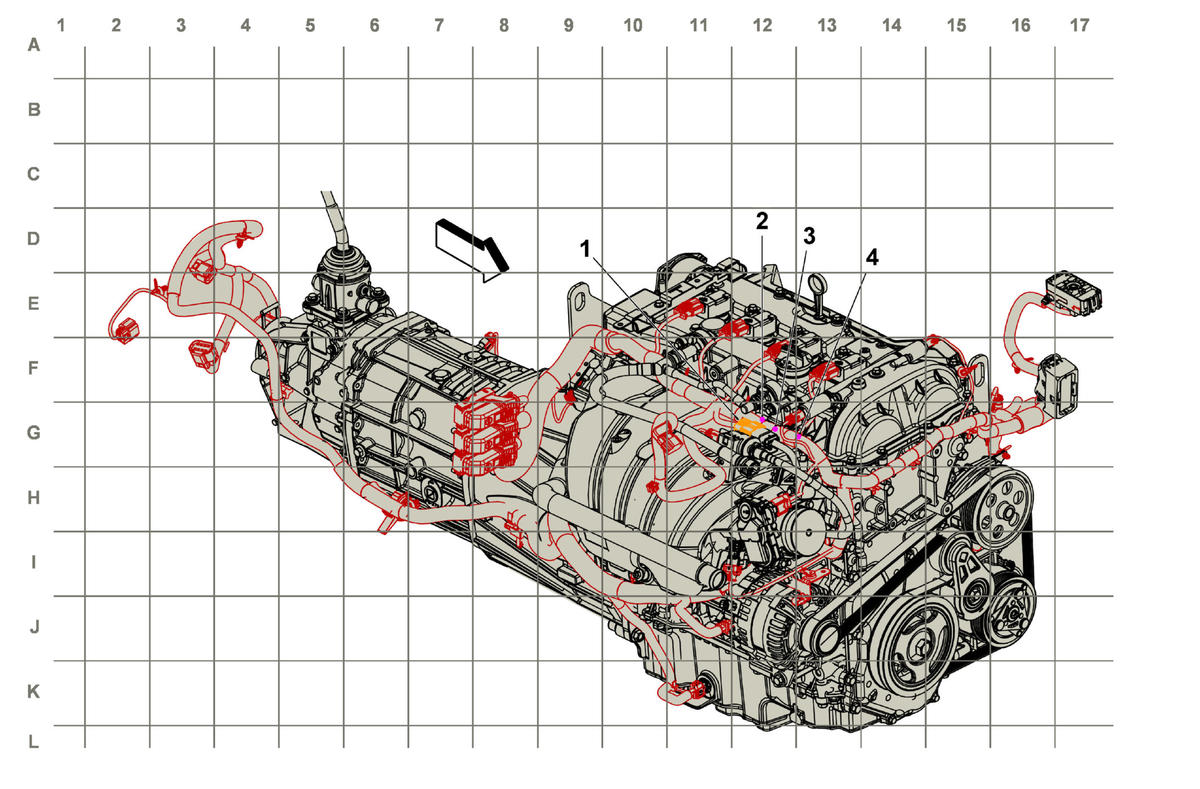

GM3924807Courtesy of GENERAL MOTORS COMPANY
Items
X160 Engine Harness to Fuel Injector Harness (12 cavities) X160 Engine Harness to Fuel Injector Harness (LCV)X160 Engine Harness to Fuel Injector Harness (LGZ)
J112 Engine Harness (LCV)
J113 Engine Harness
J114 Engine Harness
