Engine Harness Routing - Rear (LGZ)

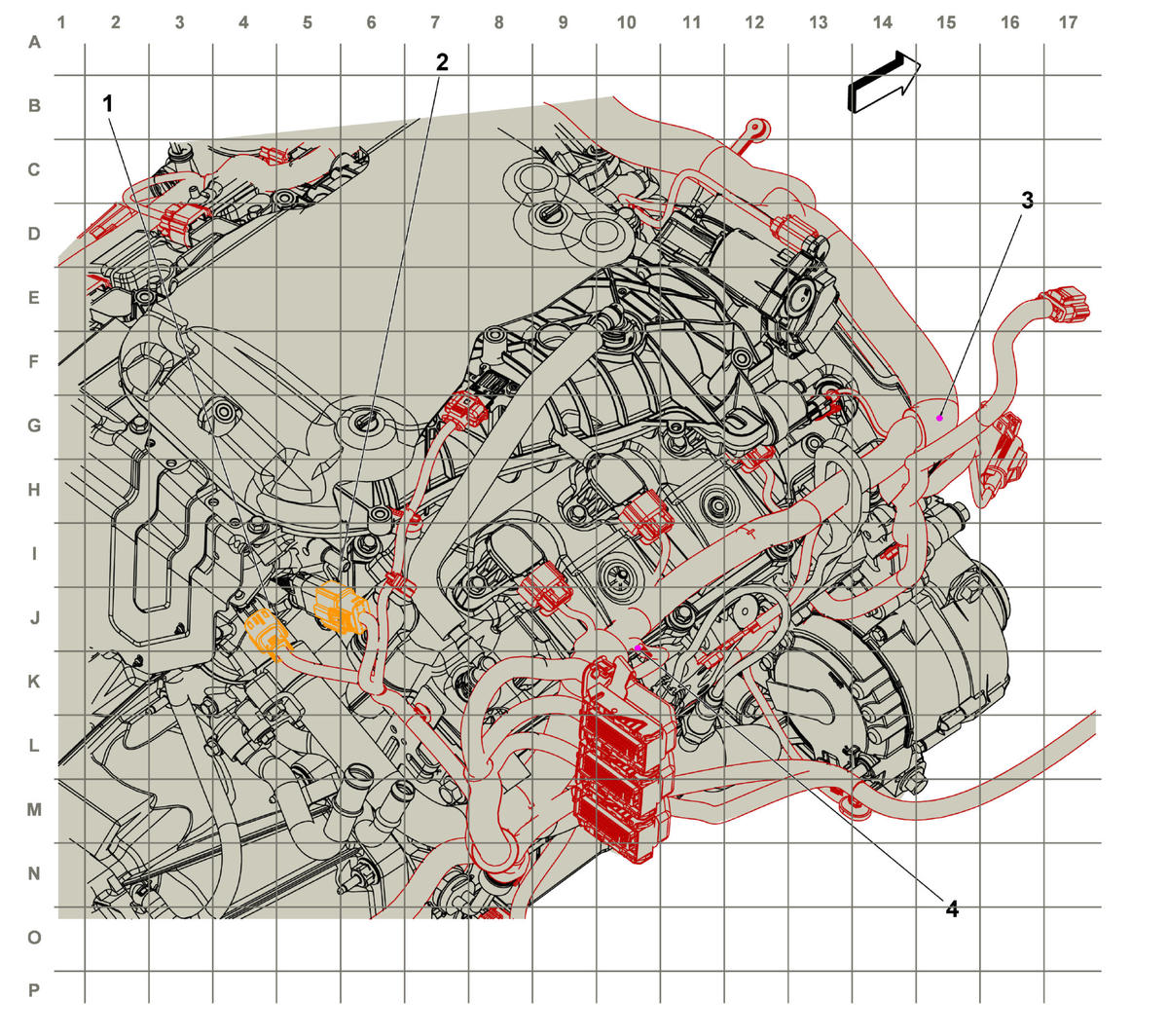

GM4176064Courtesy of GENERAL MOTORS COMPANY
Items
X160 Engine Harness to Fuel Injector Harness (12 cavities) X160 Engine Harness to Fuel Injector Harness (LCV)X160 Engine Harness to Fuel Injector Harness (LGZ)
X161 Engine Harness to Fuel Injector - Even Harness (12 cavities) (LGZ) X161 Engine Harness to Fuel Injector - Even Harness
J128 Engine Harness
J129 Engine Harness
