Engine Harness Routing - Left Front (LCV)

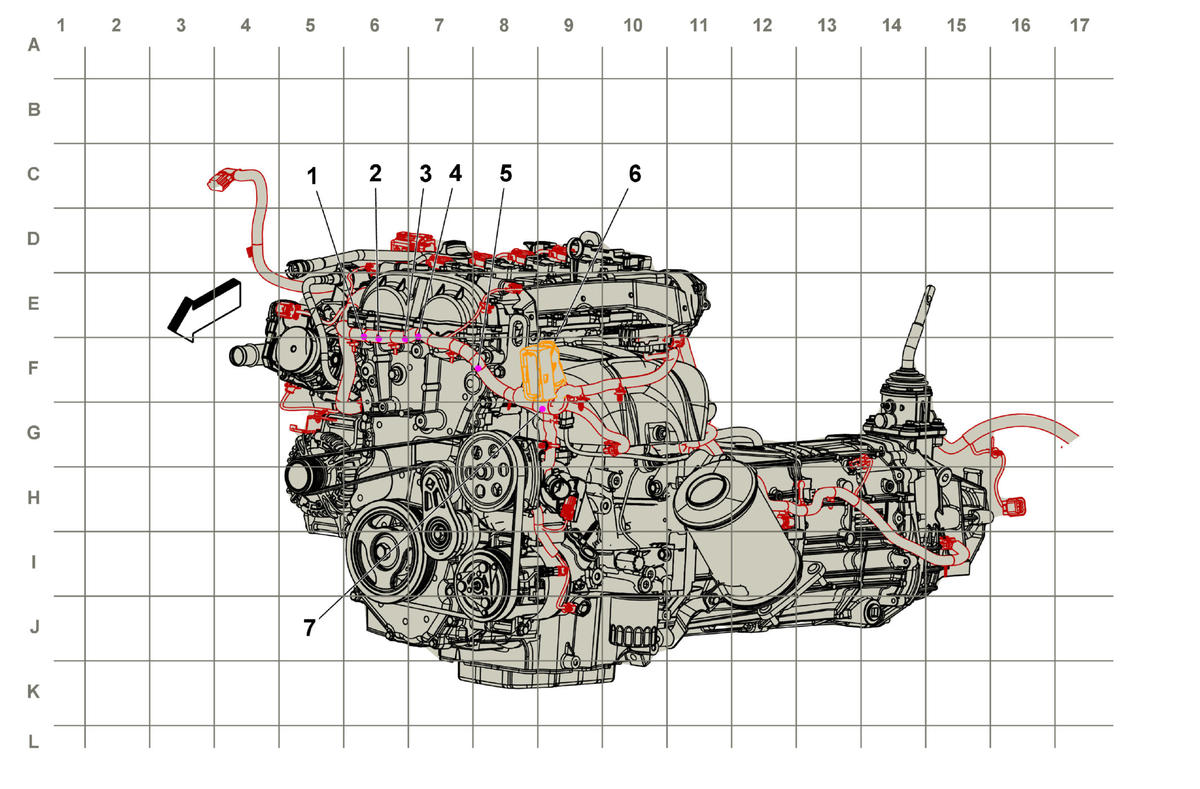

GM3924802Courtesy of GENERAL MOTORS COMPANY
Items
J111 Engine Harness
J109 Engine Harness
J107 Engine Harness
J110 Engine Harness
J108 Engine Harness (LCV)
X101 Engine Harness to Body Harness (48 cavities) X101 Engine Harness to Body Harness
J106 Engine Harness
