Driver Door Harness Routing

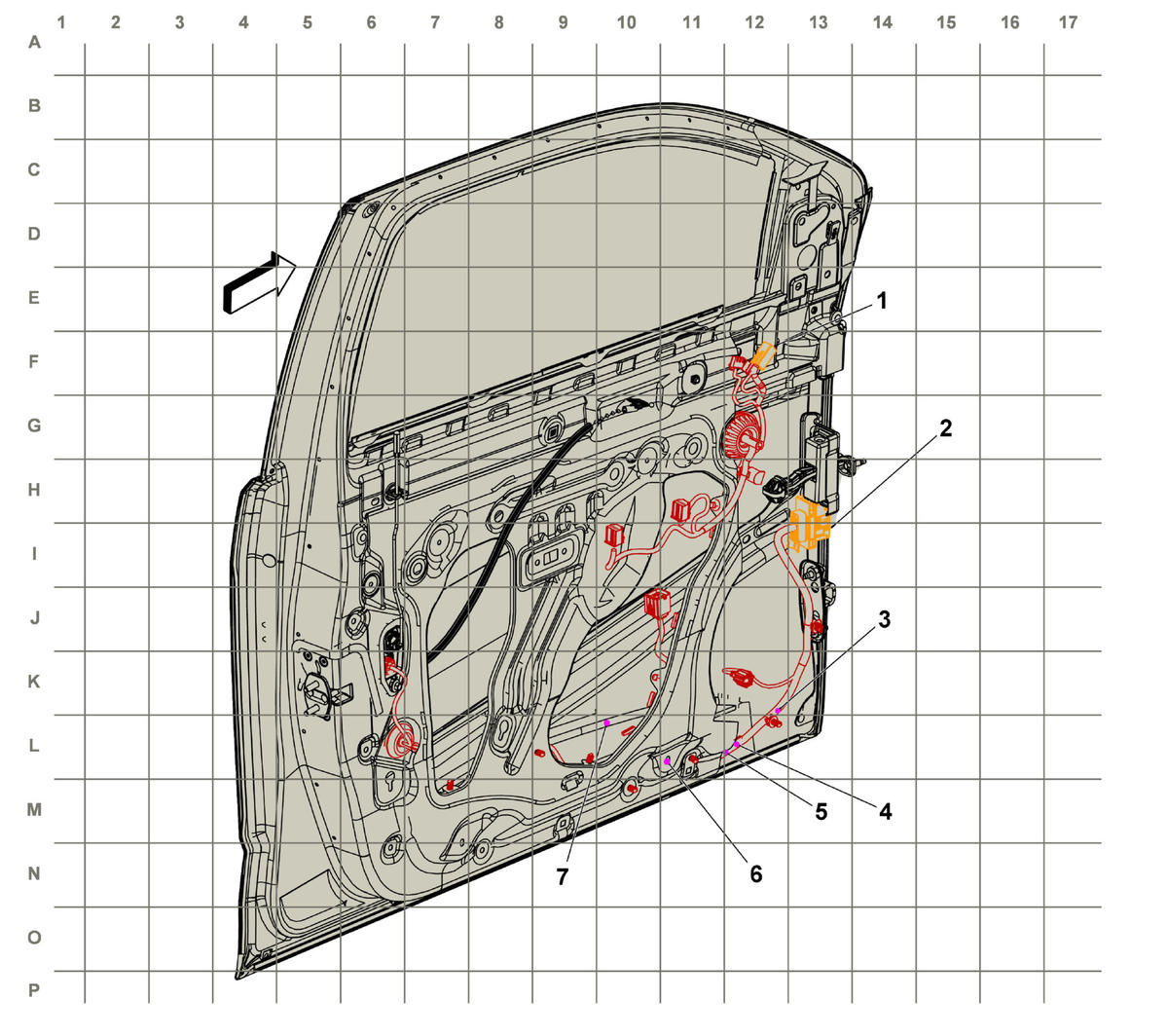

GM3925924Courtesy of GENERAL MOTORS COMPANY
Items
X510 Outside Rearview Mirror Harness to Driver Door Harness (10 cavities) X510 Outside Rearview Mirror Harness to Driver Door Harness
X500 Body Harness to Driver Door Harness (34 cavities) X500 Body Harness to Driver Door Harness
J504 Driver Door Harness
J505 Driver Door Harness
J503 Driver Door Harness
J501 Driver Door Harness
J502 Driver Door Harness
