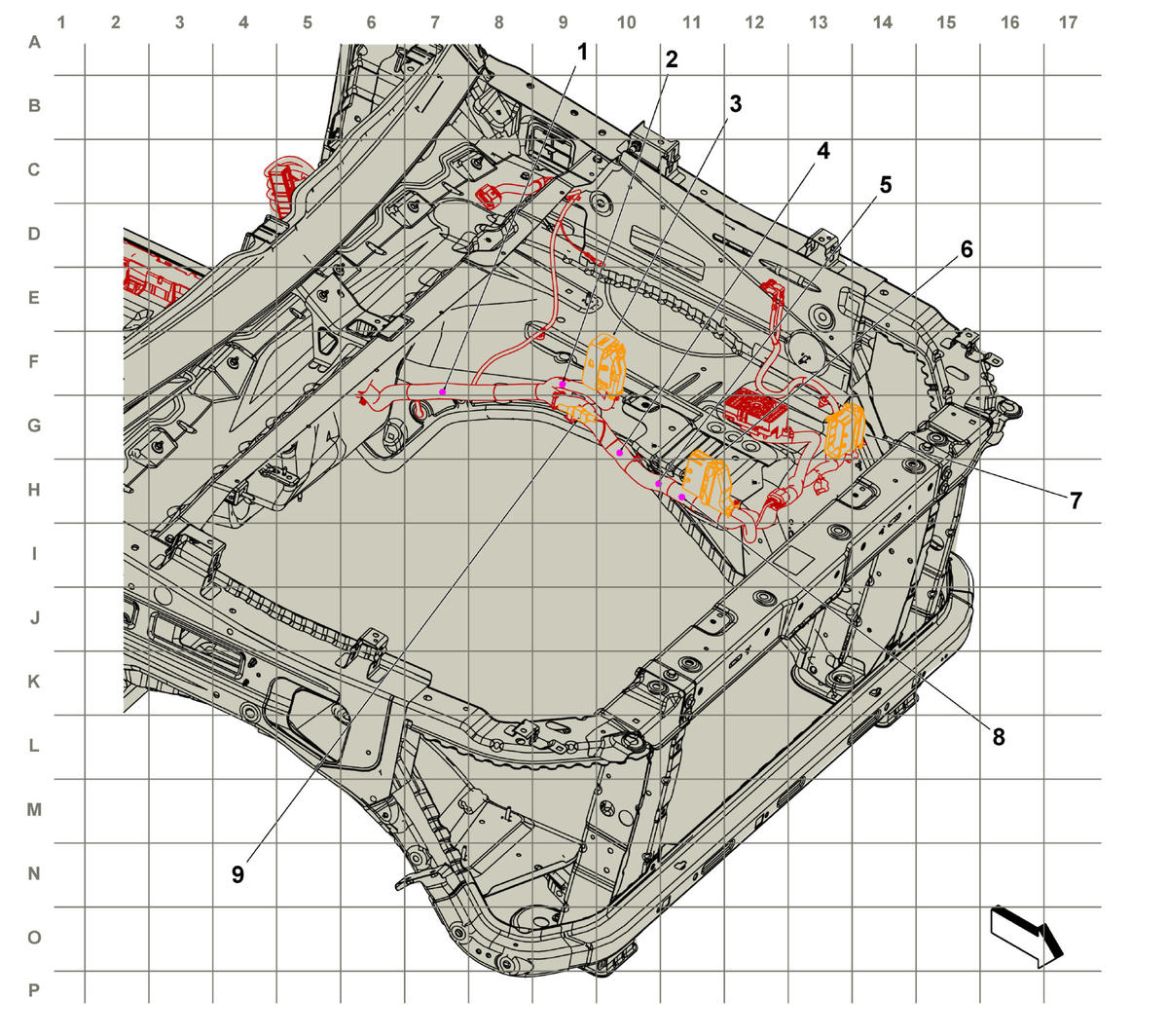

Body Harness Routing - Left Engine Compartment (LCV/LGZ)
| Items |
|---|
| J103 Body Harness |
| J102 Body Harness |
| X106 Body Harness to Chassis Harness (48 cavities) X106 Body Harness to Chassis Harness |
| J123 Body Harness |
| J101 Body Harness |
| X101 Engine Harness to Body Harness (48 cavities) X101 Engine Harness to Body Harness |
| X102 Forward Lamp Harness to Body Harness (48 cavities) X102 Forward Lamp Harness to Body Harness |
| J100 Body Harness |
| X125 Body Harness to Chassis Harness (UVB) X125 Body Harness to Chassis Harness |
