Underbody Components (LWN) (6 of 6)

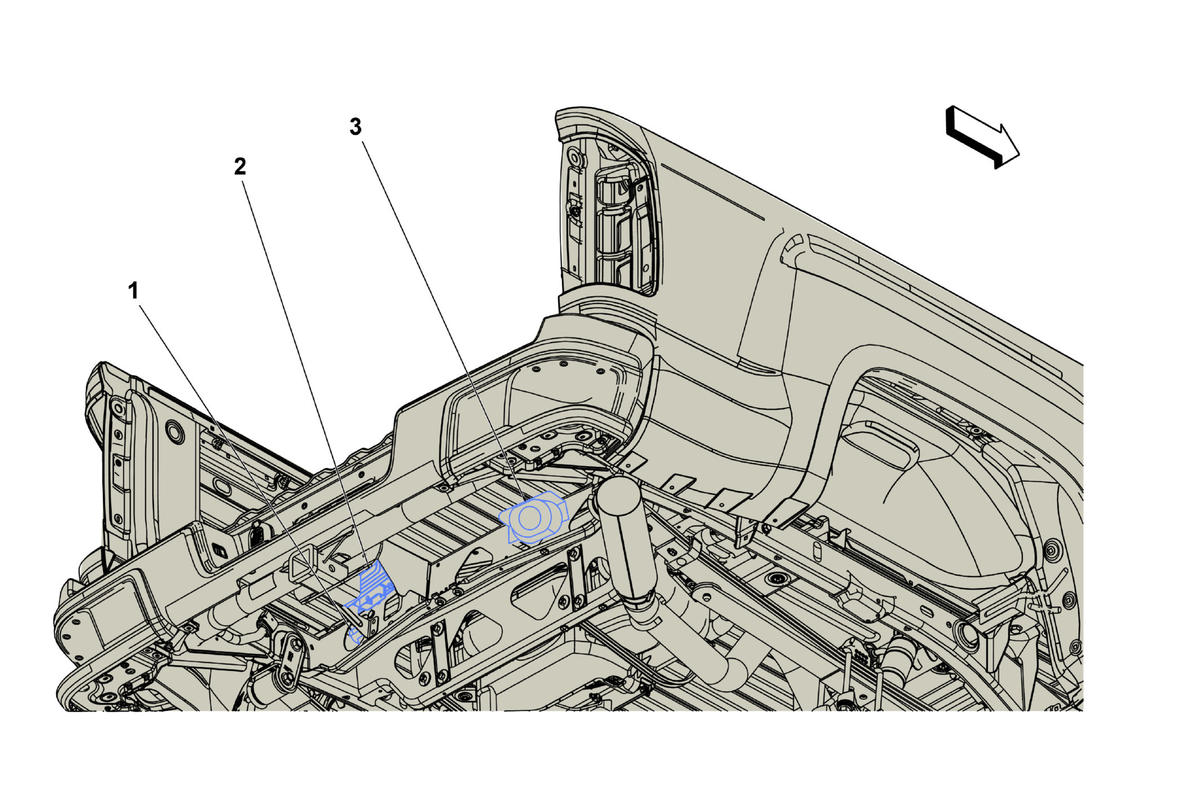

GM5129641Courtesy of GENERAL MOTORS COMPANY
Items
(1) K133 Trailer Brake Power Control Module (LWN) K133 Trailer Brake Power Control Module
(2) K38A Chassis Control Module - Auxiliary K38A Chassis Control Module - Auxiliary
(3) P3 Backup Alarm (8S3) P3 Backup Alarm
