Chassis Components (Crew Cab)

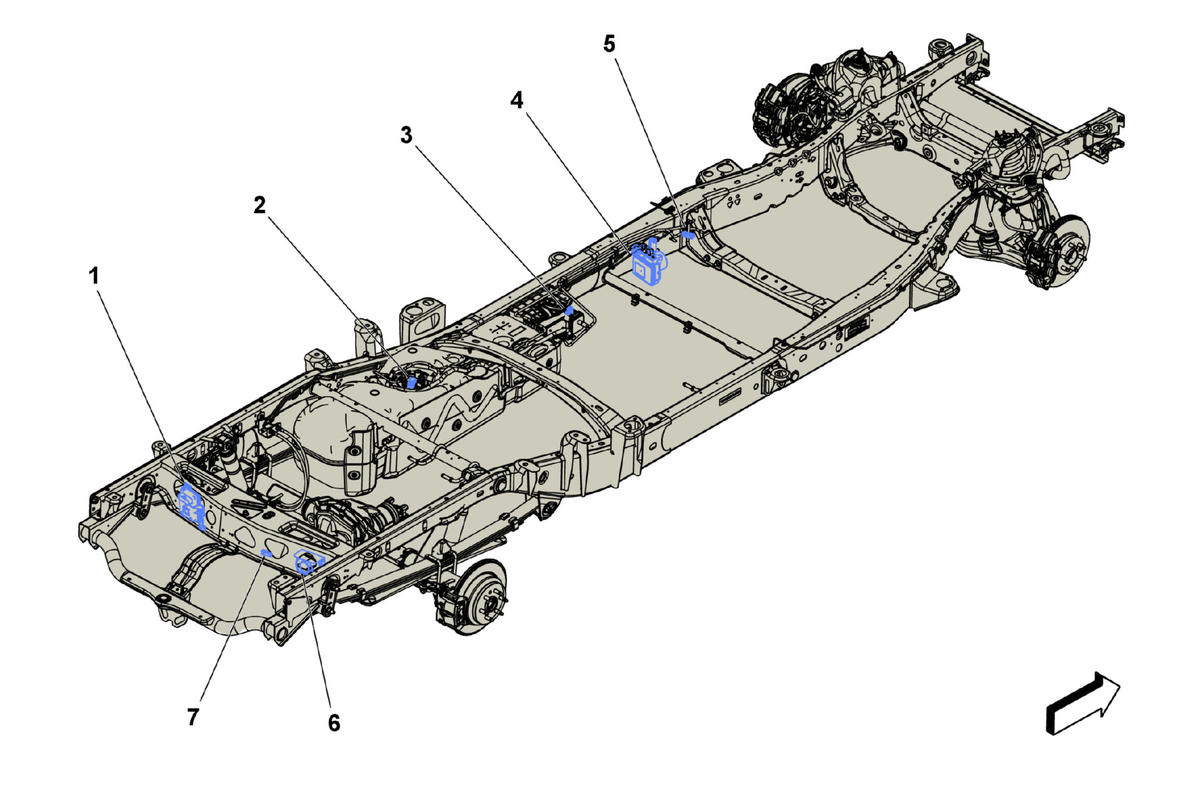

GM5129638Courtesy of GENERAL MOTORS COMPANY
Items
(1) K38A Chassis Control Module - Auxiliary K38A Chassis Control Module - Auxiliary
(2) B150 Fuel Tank Pressure Sensor (LCV/LGZ) B150 Fuel Tank Pressure Sensor
(3) Q13 Evaporative Emission Vent Solenoid Valve Q13 Evaporative Emission Vent Solenoid Valve
(4) K17 Electronic Brake Control Module K17 Electronic Brake Control Module ()
(5) B47 Fuel Pressure Sensor (LCV/LGZ) B47 Fuel Pressure Sensor
(6) P3 Backup Alarm (8S3) P3 Backup Alarm
(7) R6A Terminating Resistor - High Speed Bus R6A Terminating Resistor - High Speed Bus
