Ambient Air Temperature Gauge Sensor Replacement (Bison)

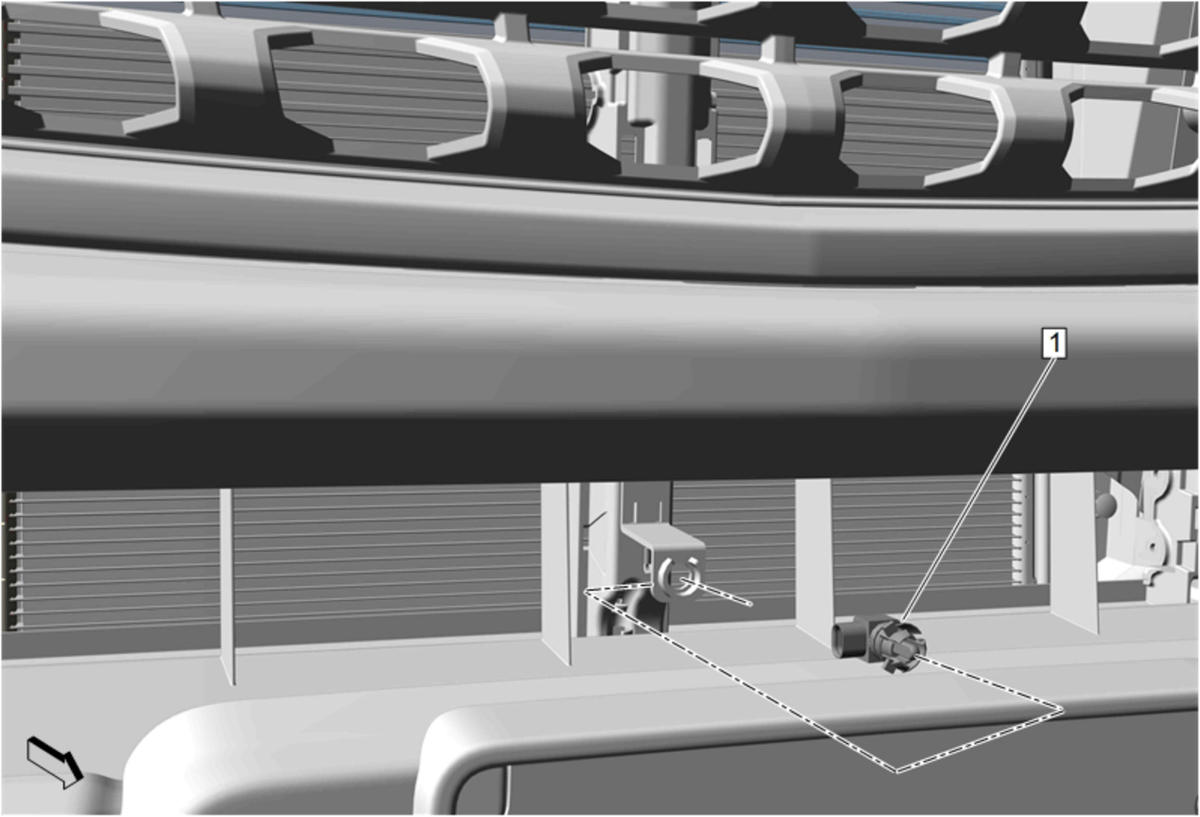

GM5146133Courtesy of '
Callout Component Name
1 Ambient Air Temperature Gauge Sensor

Procedure

  1. Disconnect the ambient air temperature gauge sensor electrical connector.
  2. Depress the ambient air temperature gauge sensor tabs to remove from the ambient air temperature sensor bracket.
