Front Wheel Opening Molding Replacement (ZR2)

Courtesy of GENERAL MOTORS COMPANY

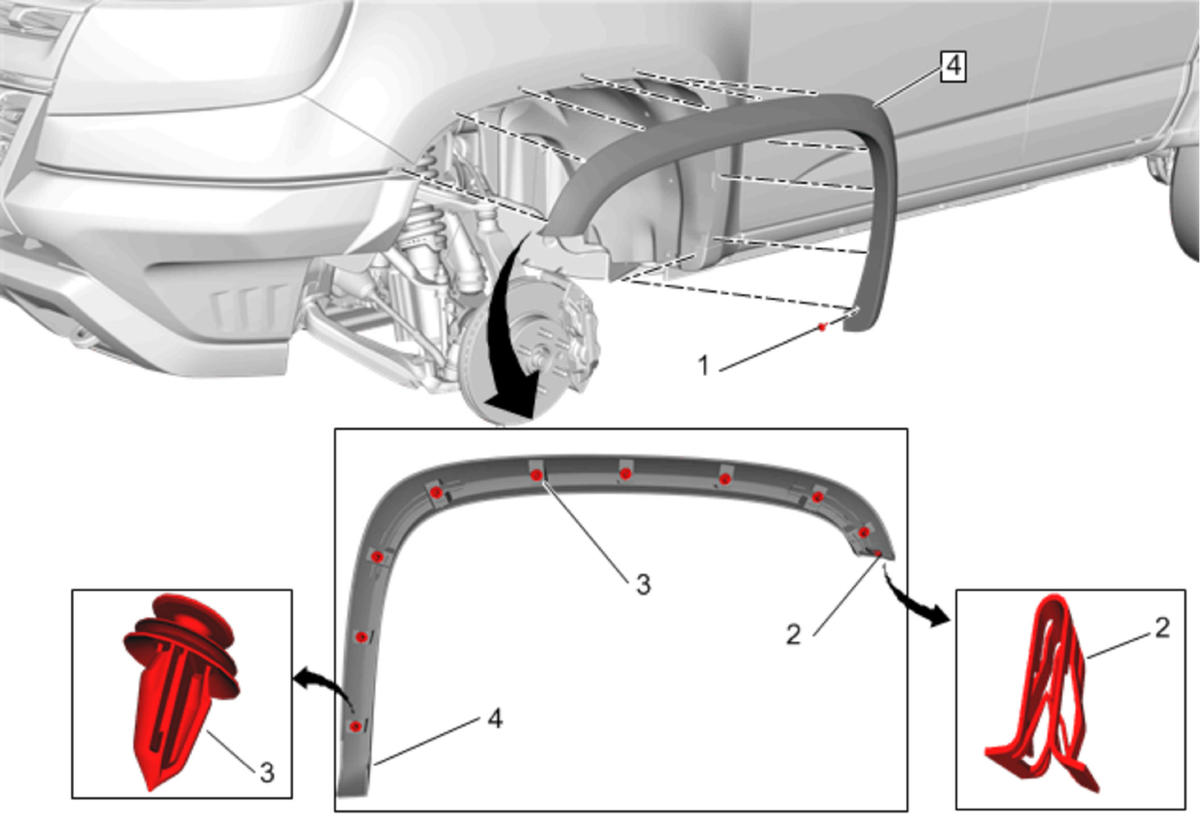

Callout	Component Name
Preliminary Procedure Tire and Wheel Removal and Installation
1	Front Wheel Opening Molding Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Wheel Opening Molding Clip
3	Front Wheel Opening Molding Retainer [9x]
4	Front Fender Wheel Opening Molding Procedure Apply two layers of masking tape around the top edge of the front wheel opening molding to prevent any paint surface damage. Using a suitable flat bladed plastic tool, release the retainers and clip from around the front bumper fascia and the front fender. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water and a clean towel, remove the left over adhesive residue from the masking tape.
