Home >> GMC >> 2019 >> Canyon SL >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Driver Information Center Controls (UDC)

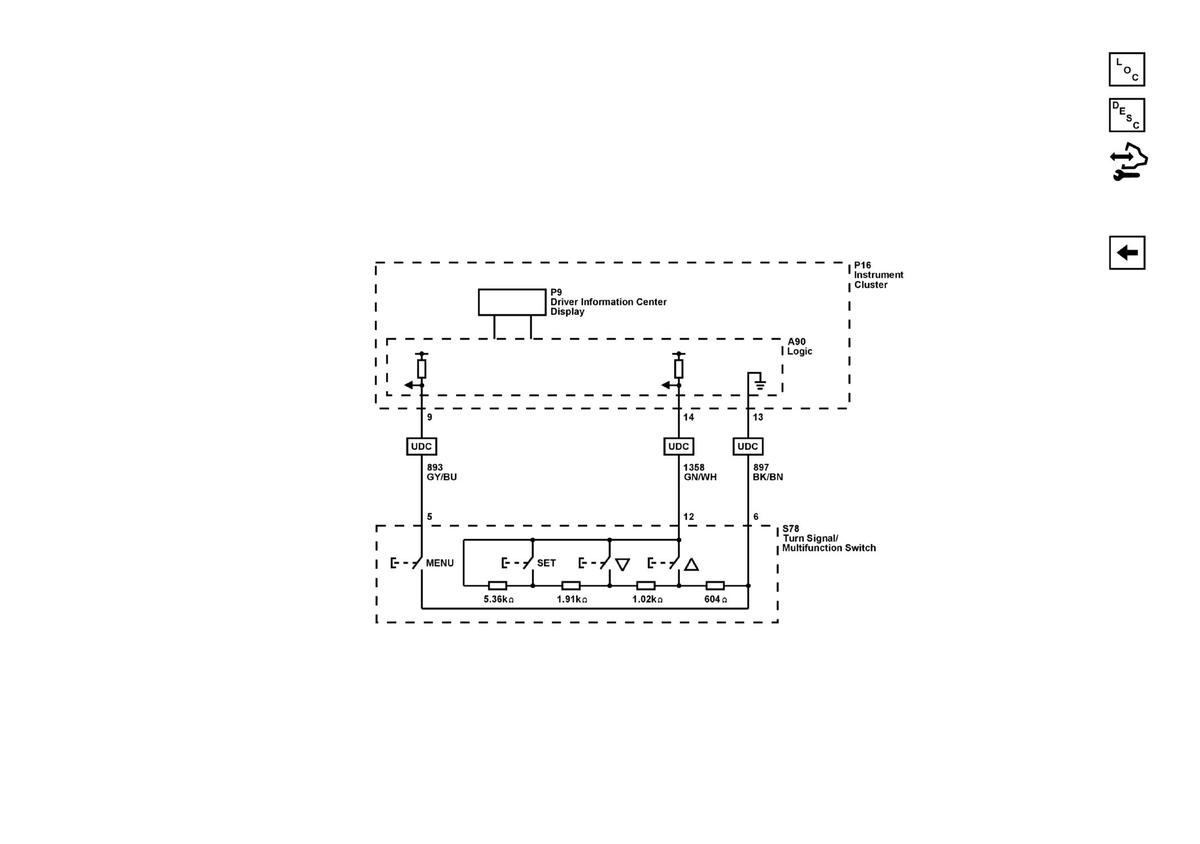

Driver Information Center Controls (UDC)

GM4944999
