Removal Procedure

  1. GM3685203Courtesy of '

    Instrument Panel Accessory Center Trim Plate (1) - Remove - Instrument Panel Accessory Center Trim Plate Replacement

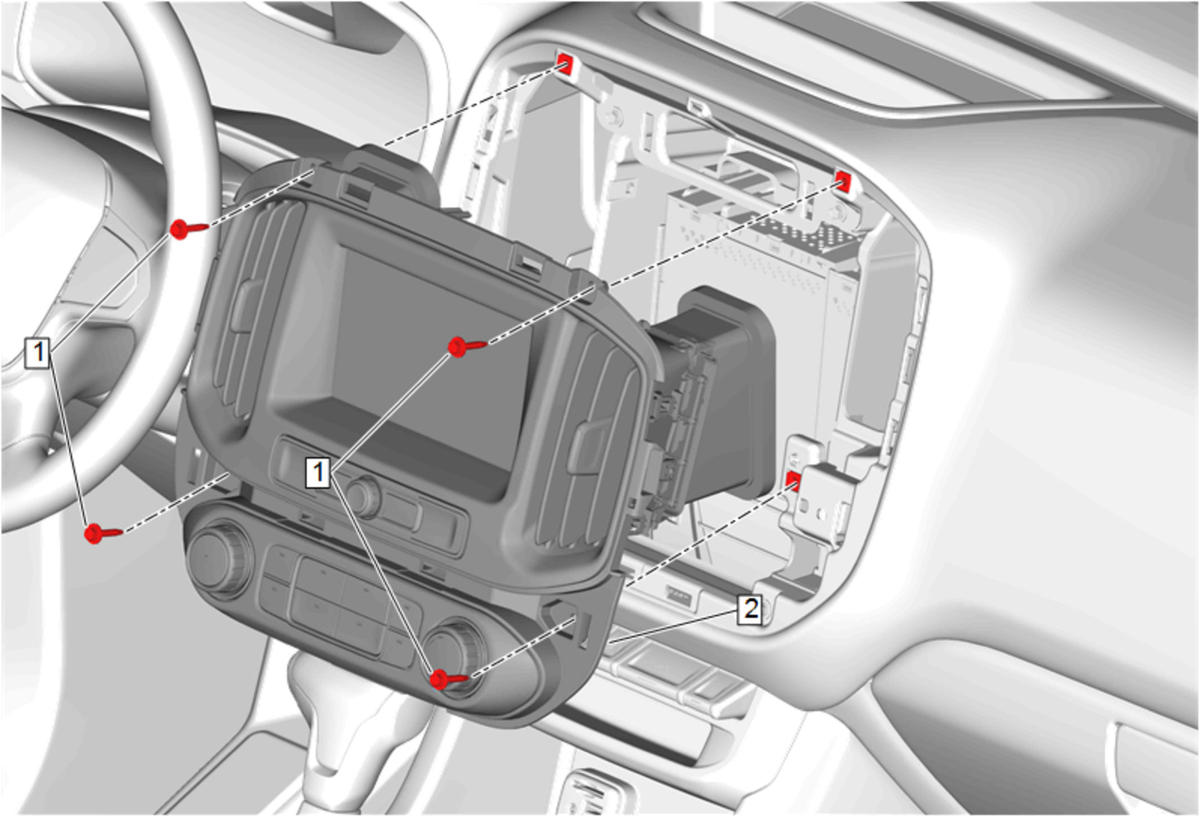

  2. GM5046602Courtesy of '

    Radio Control Bolt (1)@Instrument Panel Radio Front Trim Plate - Remove [4x]

  3. Instrument Panel Radio Front Trim Plate (2) - Remove
  4. Disconnect the electrical connectors.

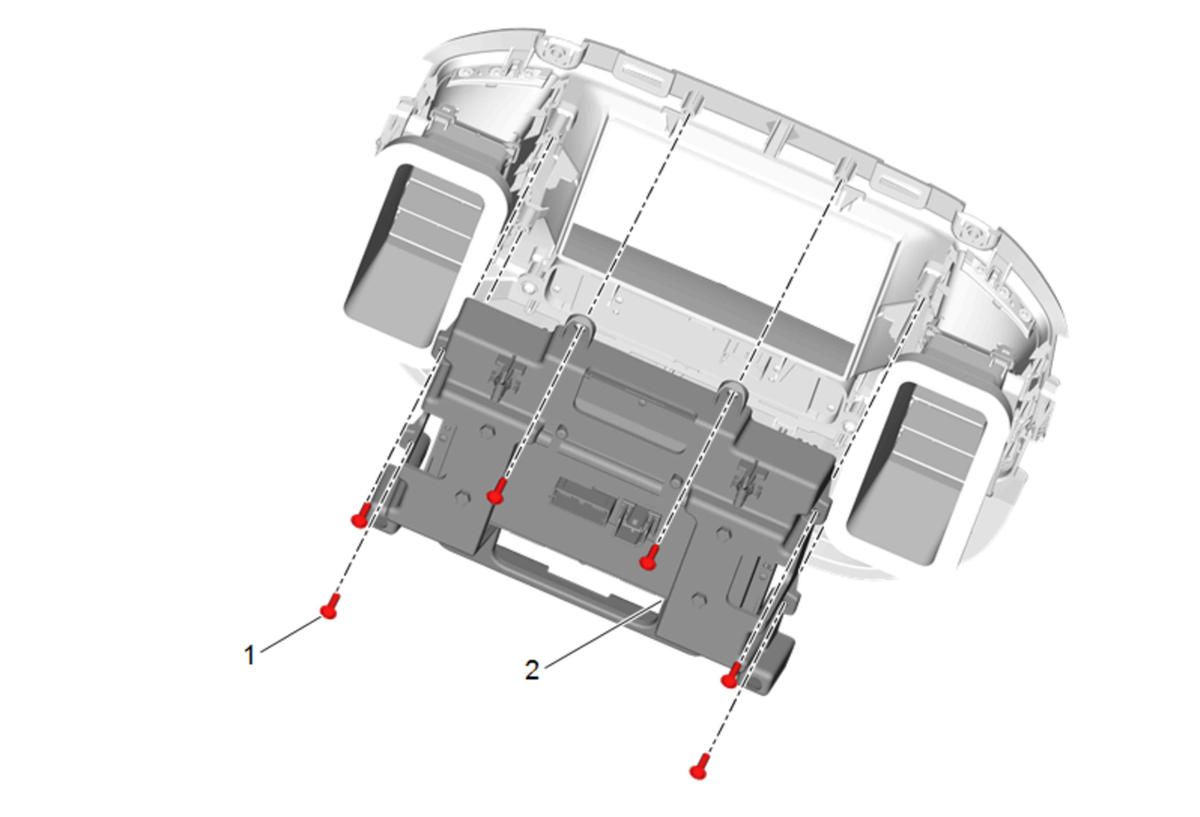

  5. GM5046657Courtesy of '

    Radio Control Bolt (1)@Radio Control Bracket - Remove [6x]

  6. Radio Control Bracket (2) - Remove

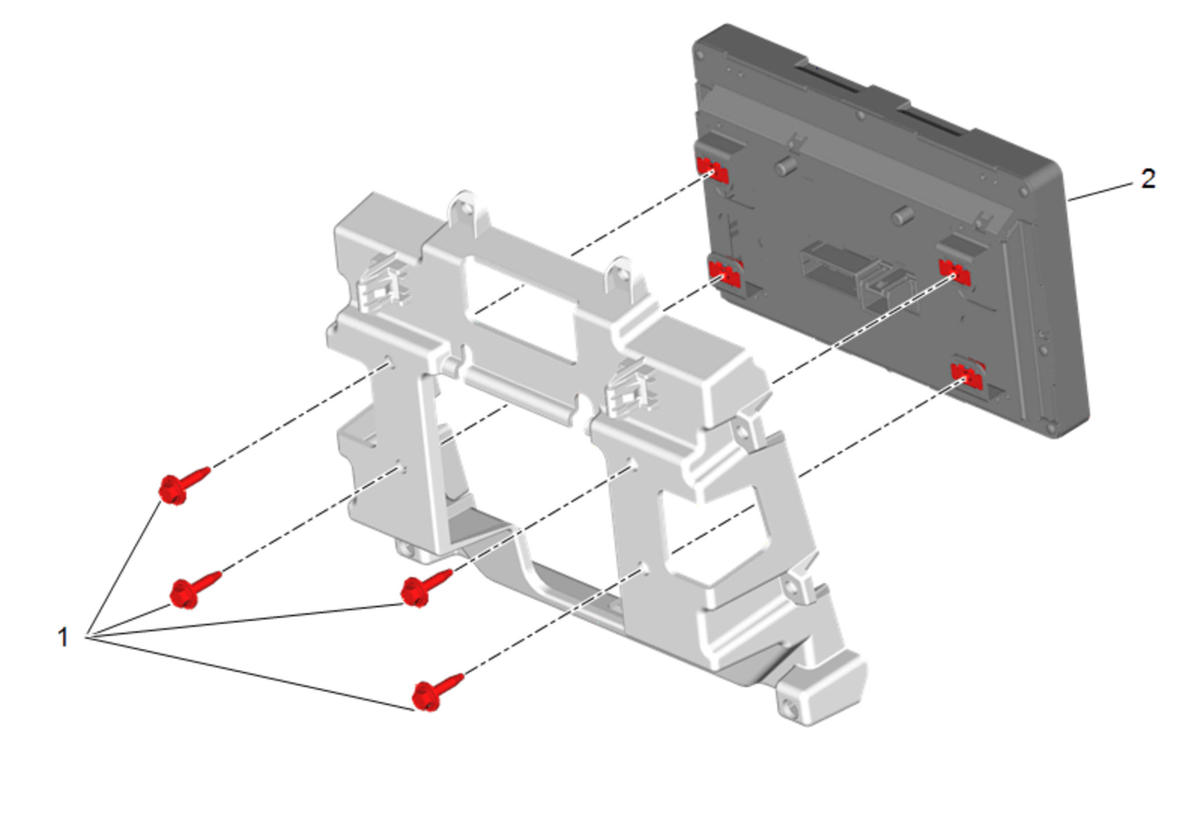

  7. GM5046855Courtesy of '

    Radio Control Bolt (1)@Driver Information Display - Remove [4x]

  8. Driver Information Display (2) - Remove
