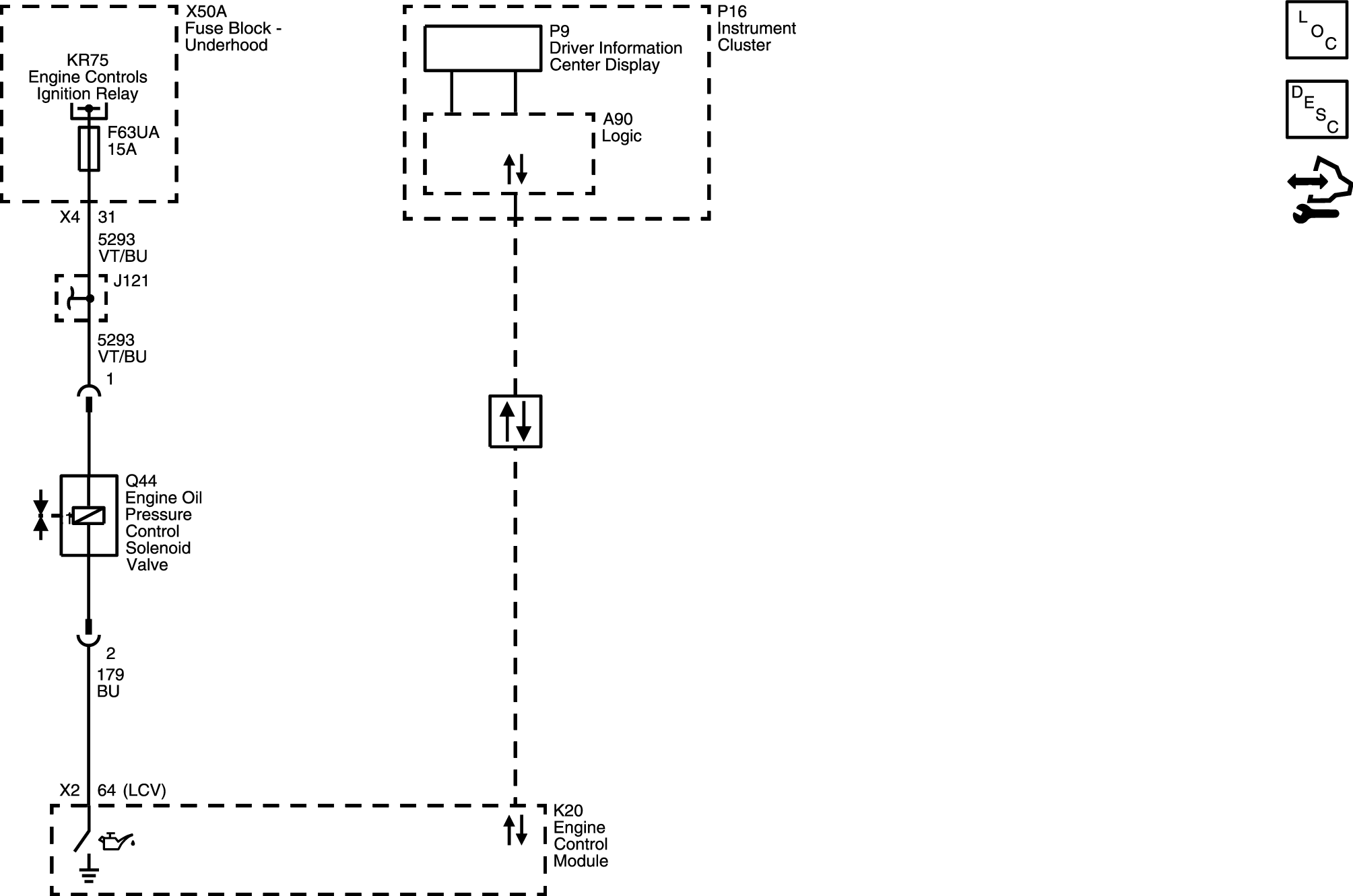

Oil Level Switch and Pressure Control (LCV)
Oil Level Switch and Pressure Control (LCV)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
