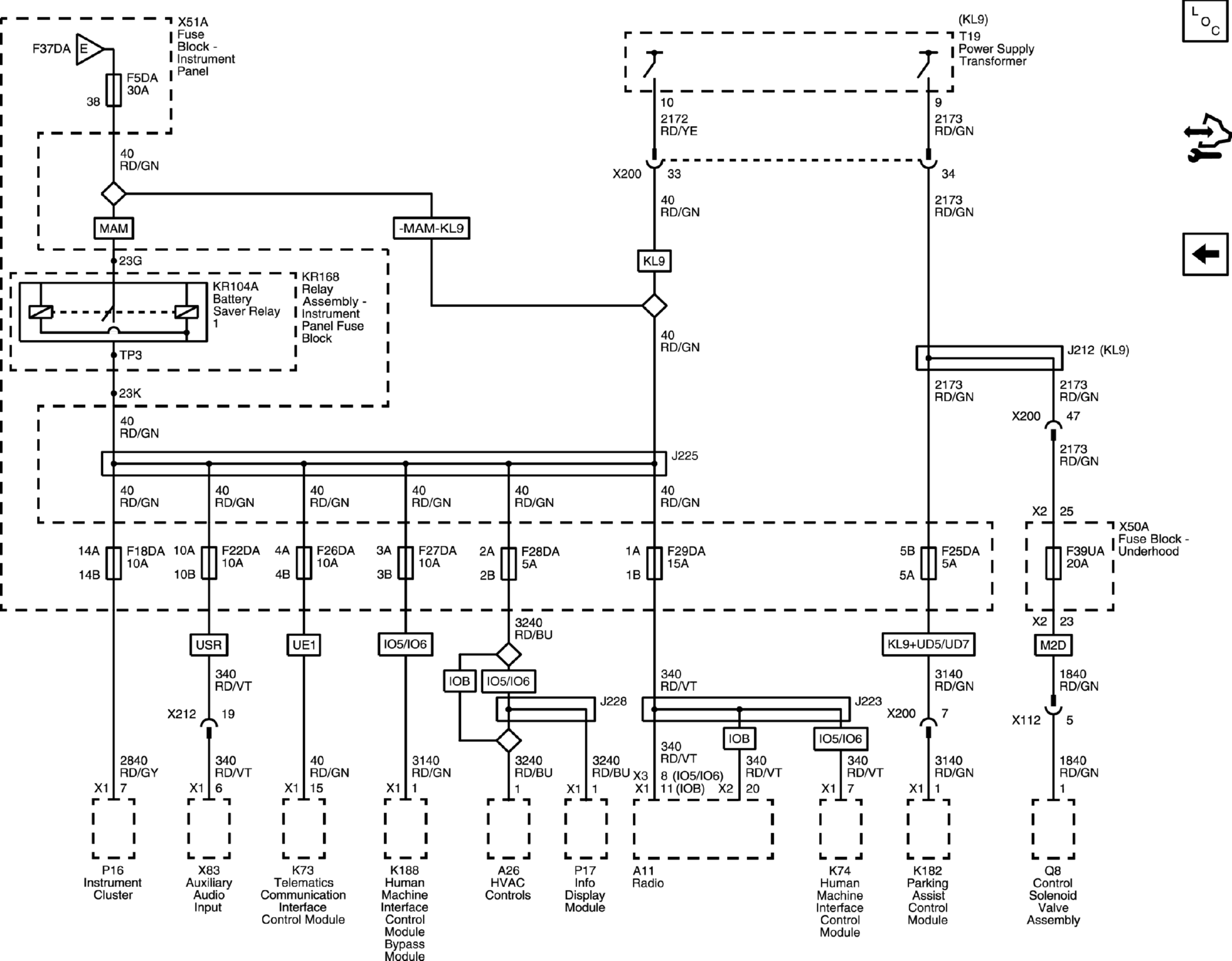

F5DA, F18DA, F22DA, F25DA, F26DA, F27DA, F28DA, F29DA, and F39UA Fuses

GM4894484

Courtesy of GENERAL MOTORS COMPANY
