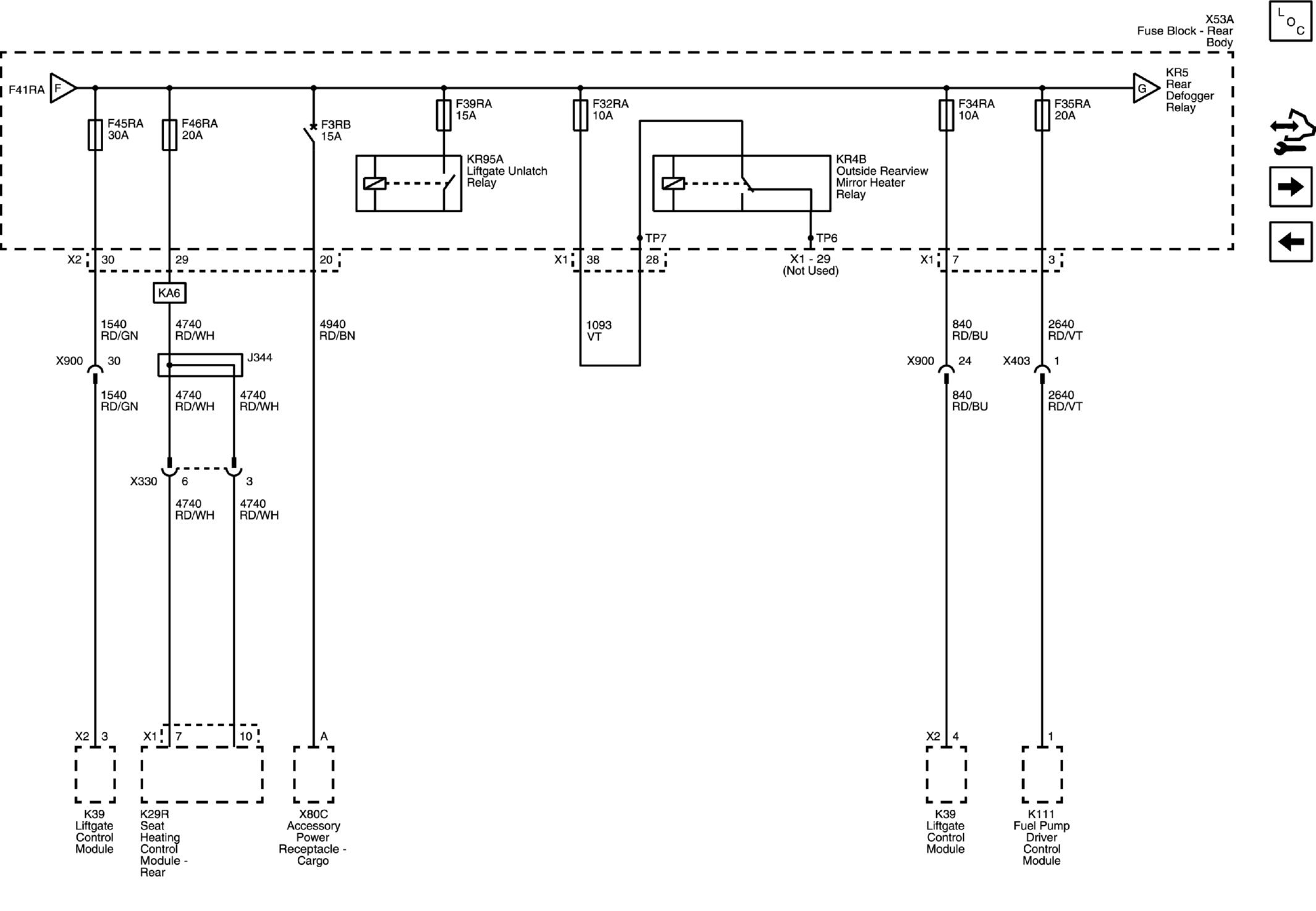

F32RA, F34RA, F35RA, F39RA, F45RA, F46RA Fuses, and F3RB Circuit Breaker

GM4894482

Courtesy of GENERAL MOTORS COMPANY
