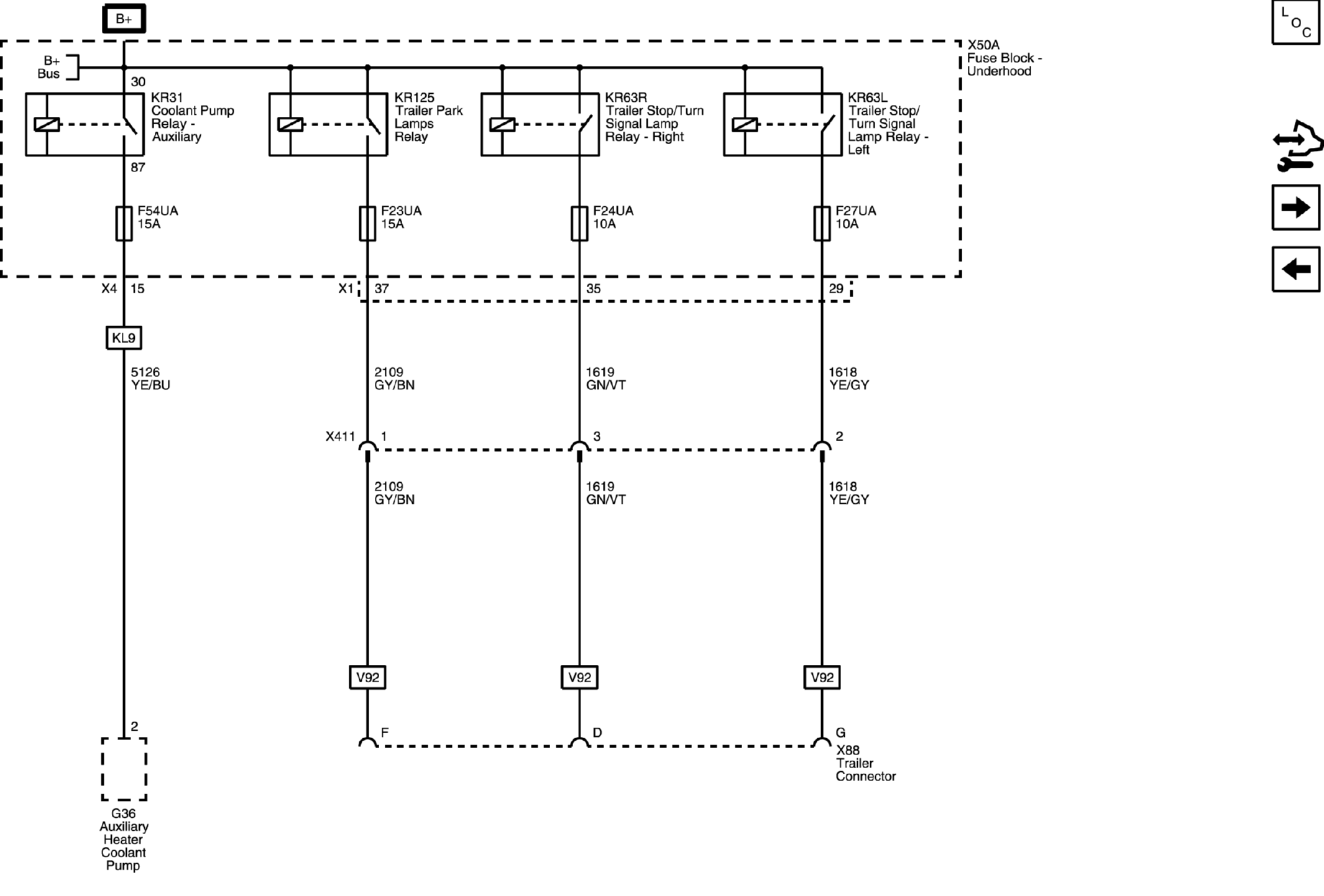

Home >> GMC >> 2019 >> Acadia Denali, FWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Schematics and Harness Routing Diagrams >> Power Distribution Wiring Schematics >> F23UA, F24UA, F27UA, and F54UA Fuses
