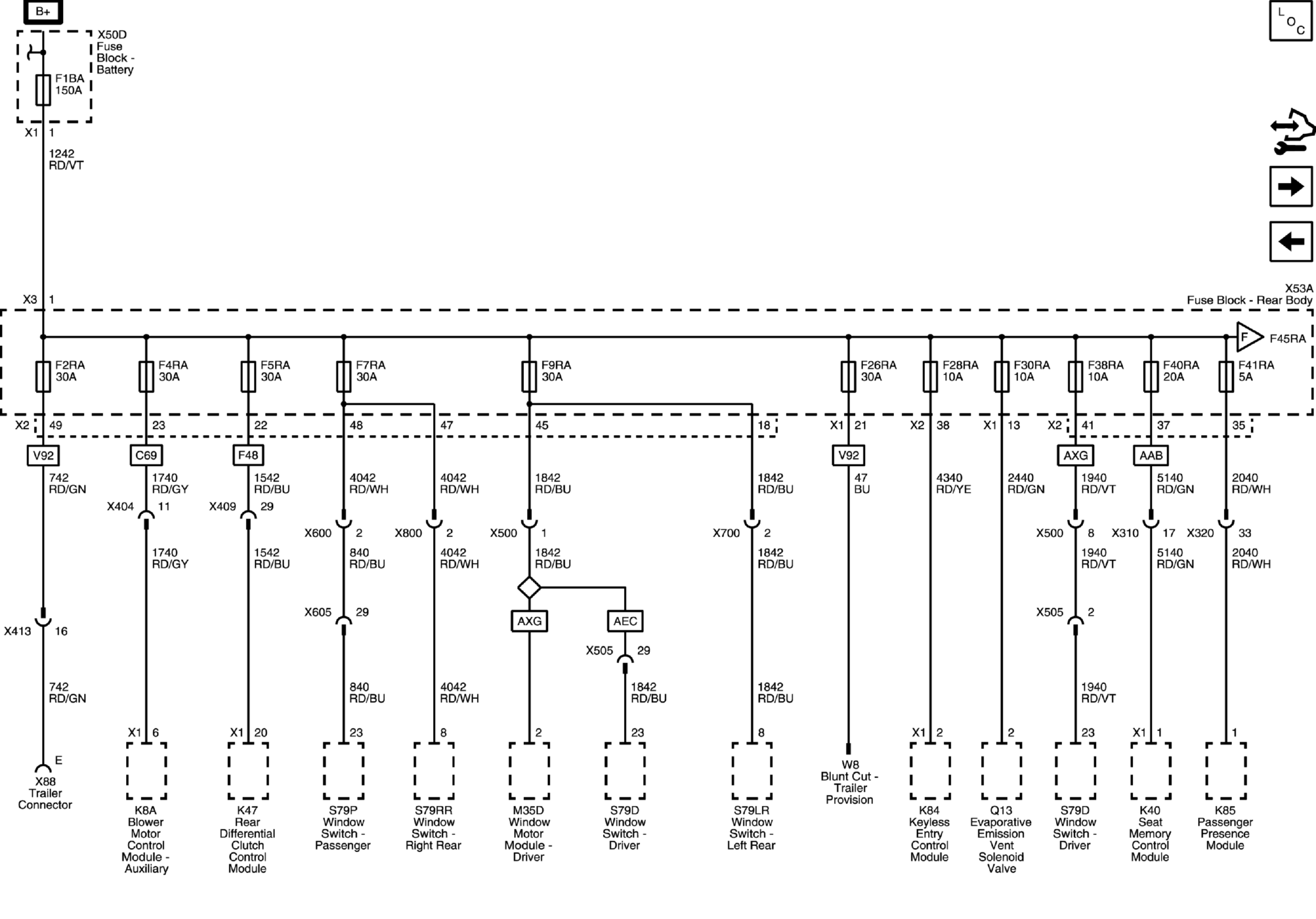

F1BA, F2RA, F4RA, F5RA, F7RA, F9RA, F26RA, F28RA, F30RA, F38RA, F40RA, and F41RA Fuses

GM4894479

Courtesy of GENERAL MOTORS COMPANY
