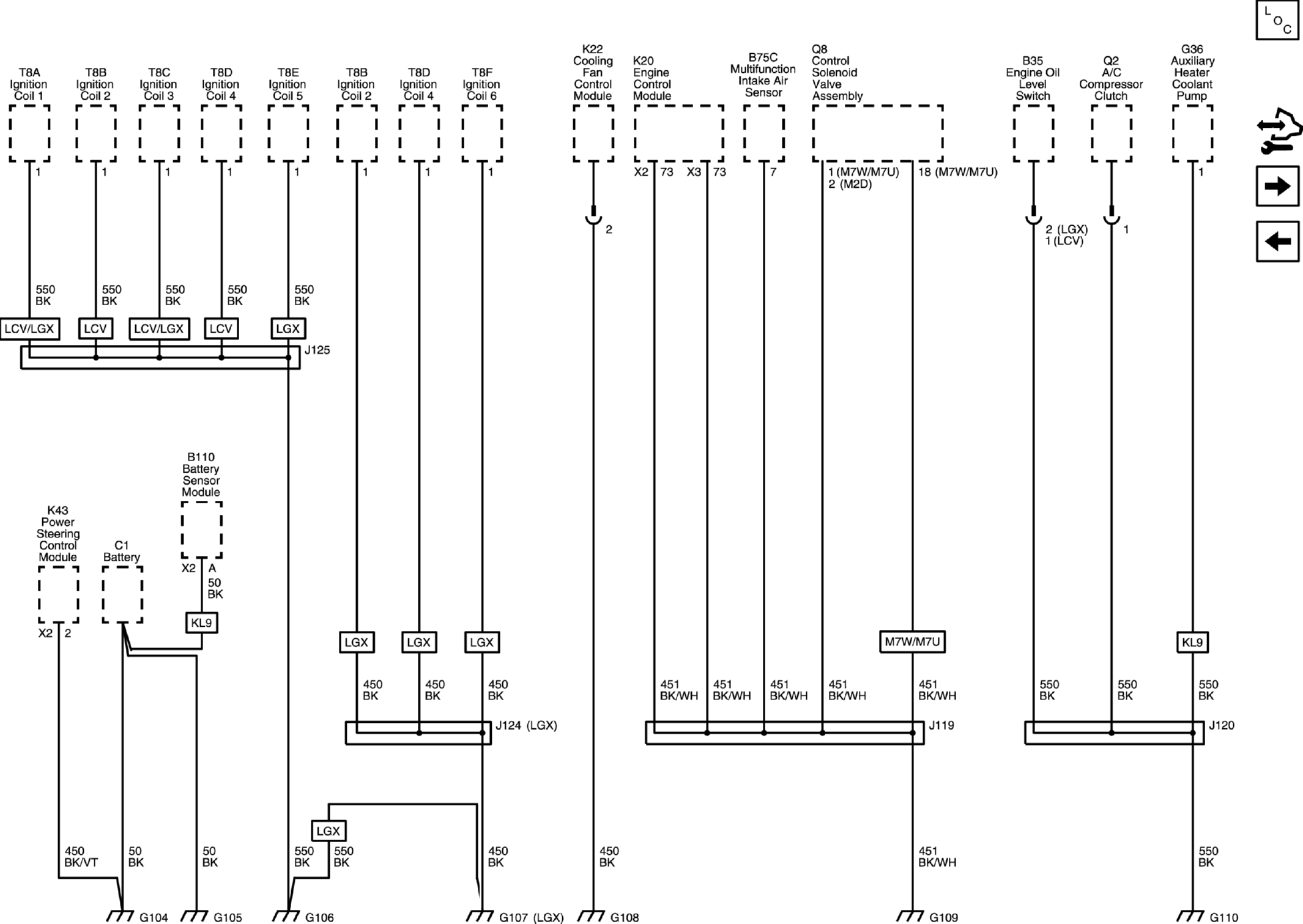

G104, G105, G106, G107 (LGX), G108, G109, and G110 (GMC)

GM4894533

Courtesy of GENERAL MOTORS COMPANY
