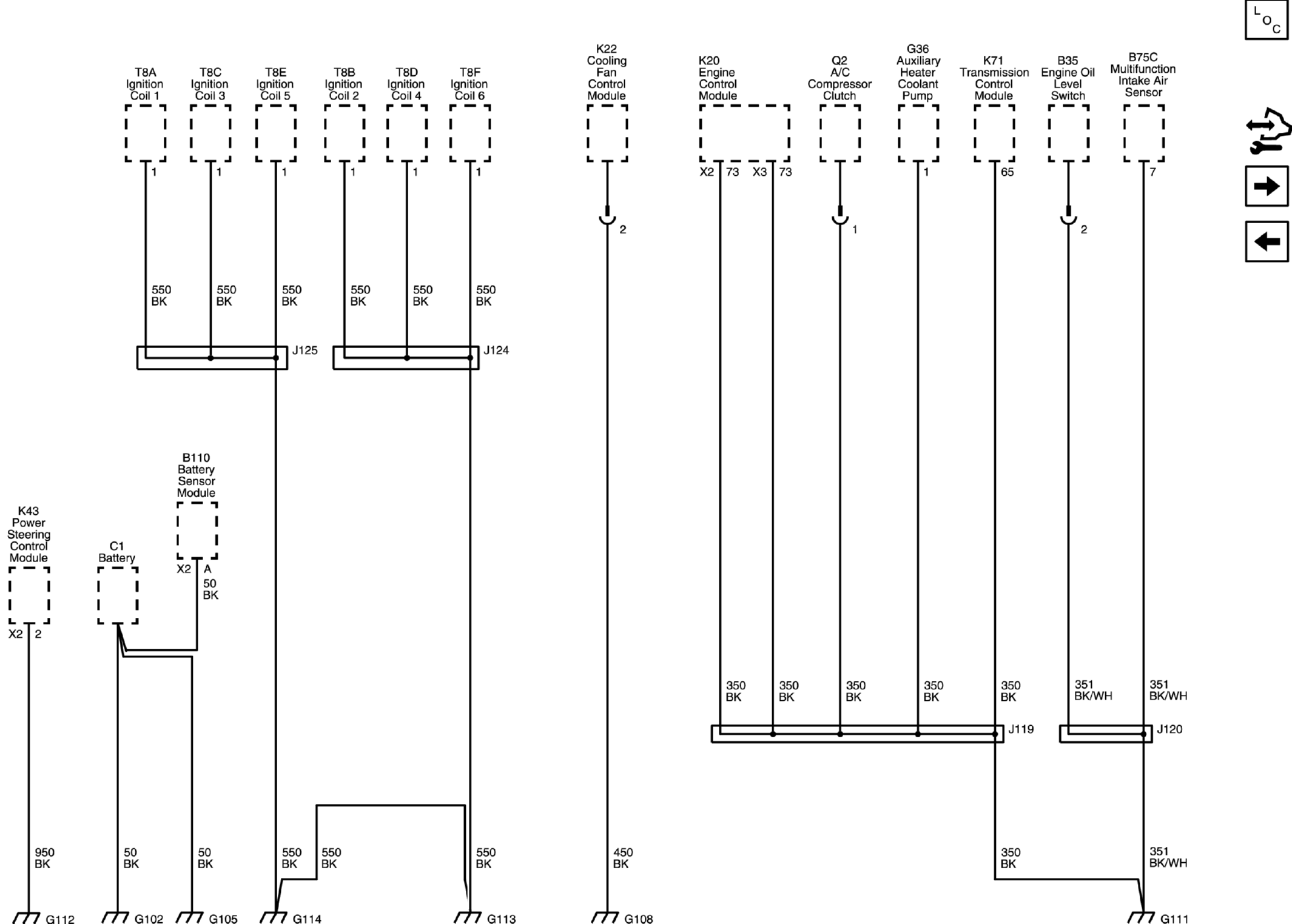

G102, G105, G108, G111, G112, G113, and G114 (Holden)

GM5020650

Courtesy of GENERAL MOTORS COMPANY
