Installation Procedure

  1. Power Brake Booster Vacuum Hose - Install
  2. GM4285123Courtesy of GENERAL MOTORS COMPANY

    Quick Connect Fitting (1) - Connect

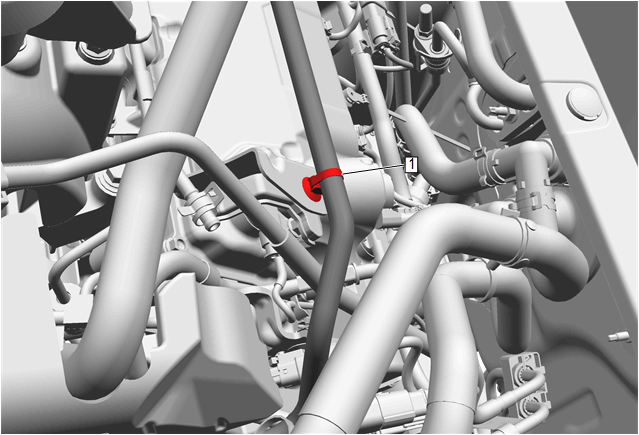

  3. GM5081434Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Vacuum Hose Retainer (1) - Secure

  4. GM5081435Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A small amount of denatured alcohol may be used as a lubricant for assembly.

    Power Brake Booster Vacuum Sensor (1) - Install

  5. Connect the electrical connector.
